DN250 x DN225 Raccord PVC-U Reducing Coupling FF SWJ
P00810250225
Overview
- SWJ High Pressure PVC
Product Properties
Size
250MM
Rating
PN10
Length
BLANK
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
Dark Grey
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Cure Time for Solvent Weld Joints
>15℃ 24hrs | 0-15℃ 48hrs
Allowable Operating Temperature - Degrees
50 DEG
Allowable Operating Pressure - 20 Degrees Celsius
PN10 @ 20 deg
Mechanical Properties
Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
11MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
75℃
Flammability
will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2
Dimensions
Size
250MM
Carton Qty
35
Standards & Accreditations
Product Standard
AS/NZS 1477:2017 PVC pipes and fittings for pressure applications
Warranty
2 Year

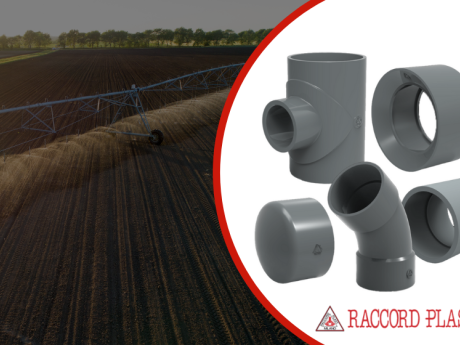

Learn more about our
