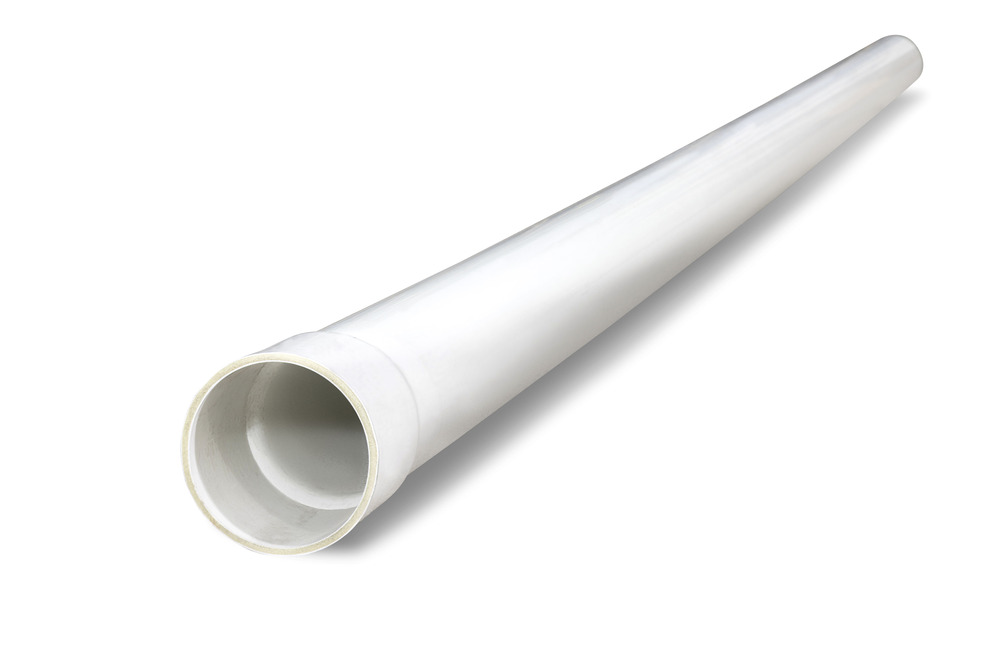

25 PN9 PRESS S1 PIPE SWJX6M UPVC

Enquire

PPSO925

Overview

Australian Made
BEP PVC - Manufactured from Best Environmental Practice PVC
Installation economics
Operation efficiencies
Corrosion resistant
Light weight
Electrically nonconductive

Product Properties

Size 25MM

Length 6.0M

Primary Material PVC

UOM LENGTHS

Joint Type Solvent Weld Joint

Colour White

Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm

Cure Time for Solvent Weld Joints >15℃ 24hrs | 0-15℃ 48hrs

Allowable Operating Temperature - Degrees 50℃

Allowable Operating Pressure - 20 Degrees Celsius 900kPa

Minimum Radius of Curvature 7.5m

Socket Deflection 0

Unprotected UV Exposed 2 Years

Markings Material/Size/PN or SN rating/Applicable Australian Standard

Mechanical Properties

Density - Specific Gravity 1.43 kg/m³

Ultimate Tensile Strength 52MPa

Yield Strain 5.50%

Yield Stress 176MPa

Compressive Strength 66MPa

Tensile Modulus 3200MPa

Hardness Shore D 85

Poissons Ratio 0.38

Design Stress 11MPa

Ring Bending Modulus - 3mins 3200MPa

Ring Bending Modulus - 50yrs 1200MPa

Thermal Properties

Coefficient of Thermal Expansion 7 x 10^-5/℃

Thermal Conductivity 0.138 W/m.K

Specific Heat 1045 J/kg/℃

Vicat Softening Temperature >70℃

Flammability Will not support combustion

Fire Index - Ignitability 7

Fire Index - Smoke Developed 9

Fire Index - Heat Evolved 2

Dimensions

Size 25MM

Carton Qty 400

Chamfer Detail 123

Standards & Accreditations

Product Standard AS/NZS 1477 "PVC pipes and fittings for pressure applications"

Environmental Accreditation View View

POP Documents PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 year
