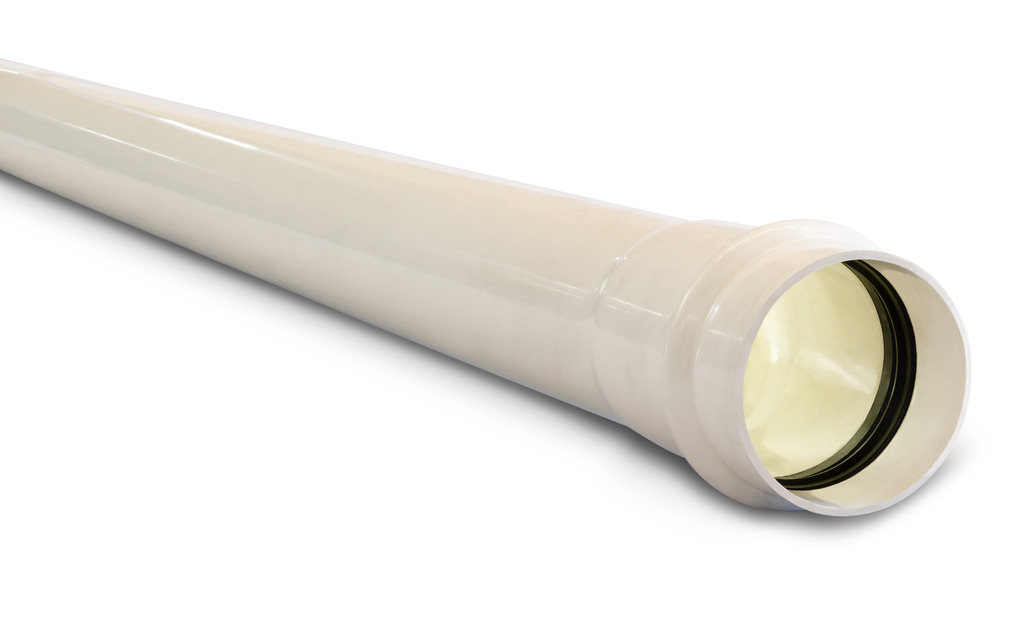

200 PN6 PRESS S1 PIPE RRJX6M UPVC-CW RIEBER RING

Enquire

PPHO6200

Overview

Australian Made
BEP PVC - Manufactured from Best Environmental Practice PVC
Installation economics
Operation efficiencies
Corrosion resistant
Light weight
Electrically nonconductive

Product Properties

Size 200MM

Length 6.0M

Primary Material PVC

UOM LENGTHS

Joint Type RRJ

Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".

Colour White

Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm

Allowable Operating Temperature - Degrees 50℃

Allowable Operating Pressure - 20 Degrees Celsius 600kPa

Minimum Radius of Curvature 60m

Socket Deflection 1°

Unprotected UV Exposed 2 Years

Maximum Support Spacing of Pipe Graded 1.5m

Markings Material/Size/PN or SN rating/Applicable Australian Standard

Mechanical Properties

Density - Specific Gravity 1.43 kg/m³

Ultimate Tensile Strength 52MPa

Yield Strain 5.50%

Yield Stress 176MPa

Compressive Strength 66MPa

Tensile Modulus 3200MPa

Hardness Shore D 85

Poissons Ratio 0.38

Design Stress 12.3MPa

Ring Bending Modulus - 3mins 3200MPa

Ring Bending Modulus - 50yrs 1200MPa

Thermal Properties

Coefficient of Thermal Expansion 7 x 10^-5/℃

Thermal Conductivity 0.138 W/m.K

Specific Heat 1045 J/kg/℃

Vicat Softening Temperature >70℃

Flammability Will not support combustion

Fire Index - Ignitability 7

Fire Index - Smoke Developed 9

Fire Index - Heat Evolved 2

Dimensions

Size 200MM

Carton Qty 12

Chamfer Detail 123

Standards & Accreditations

Product Standard AS/NZS 1477 "PVC pipes and fittings for pressure applications"

Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037

POP Documents PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 year

Learn more about our
PVC-U products

LEARN MORE ENQUIRE

Complimentary products you may be interested in...

300X250 PN10 PRESS RED FFSOC CAT8

25 PN9 PRESS S1 PIPE SWJX4M UPVC

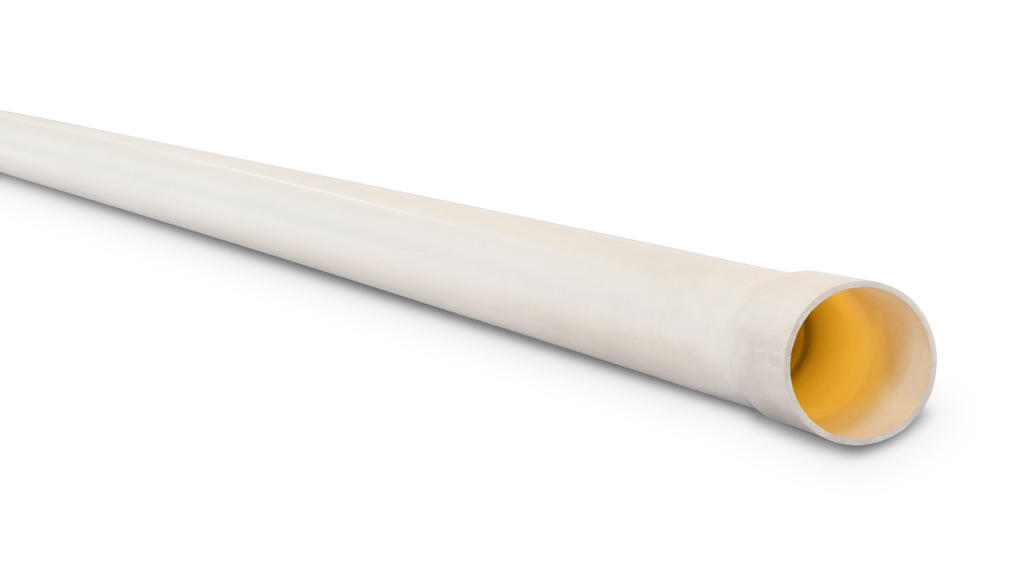

20 PN12 PRESS S1 PIPE SWJX4M UPVC
