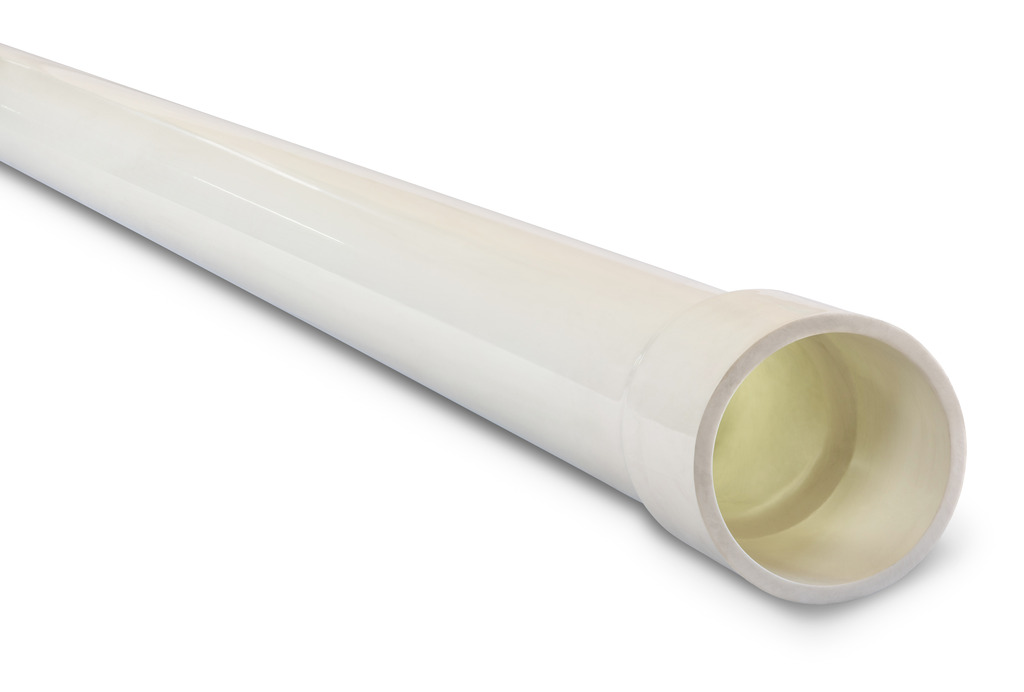

100 PN18 PRESS S1 PIPE SWJX6M UPVC
PPSO18100
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Light weight
- Electrically nonconductive
Product Properties
Size
100MM
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
Solvent Weld Joint
Colour
White
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Cure Time for Solvent Weld Joints
>15℃ 24hrs | 0-15℃ 48hrs
Allowable Operating Temperature - Degrees
50℃
Allowable Operating Pressure - 20 Degrees Celsius
1800kPa
Minimum Radius of Curvature
30m
Socket Deflection
0
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.2m
Maximum Support Spacing of Pipe Vertical
2.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity
1.43
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Yield Stress
176MPa
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
11MPa
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1200MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138 W/m.K
Specific Heat
1045 J/kg/℃
Vicat Softening Temperature
>70℃
Flammability
Will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2
Dimensions
Size
100MM
Carton Qty
51
Chamfer Detail
123
