250 PN12.5 PRESS S2 PIPE RRJX6M BLUE OPVC

DN250 x 6m PN12.5 Apollo Blue Series 2 PVC-O Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDRA12250

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Excellent Toughness and Ductility
  • Large Internal Diameter and Smooth bore
Product Data Sheet Artboard View
Product Properties
Size 250MM
Rating PN12.5
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM
Colour Blue
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 12
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1200KPa
Minimum Radius of Curvature 75m
Socket Deflection 1°
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 4000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 28MPa
Ring Bending Modulus - 3mins 4000MPa
Ring Bending Modulus - 50yrs 1800MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 2
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 2
Dimensions
Size 250MM
Inner Diameter 270.0mm
Weight 65kg
Crate Qty 8
Crate Weight 504kg
Wall Thickness 7.9mm
Socket Depth 211mm
CAD PDF Artboard View
Standards & Accreditations
Product Standard AS/NZS 4441
Product Approvals and Appraisals Artboard View
Environmental Accreditation Artboard View    Artboard View
POP Documents https://www.iplex.com.au/resources-and-tools/pipa-guidelines-and-notes/
Warranty 1 Year

Learn more about our
PVC-O products

LEARN MORE ENQUIRE

PVC-O

Complimentary products you may be interested in...

product-slider-prev product-slider-next
250X22.5 DI BEND S2 SOCNC PN35

250X22.5 DI BEND S2 SOCNC PN35
250X150 DI TEE S2 SOC/FLNC PN16

250X150 DI TEE S2 SOC/FLNC PN16

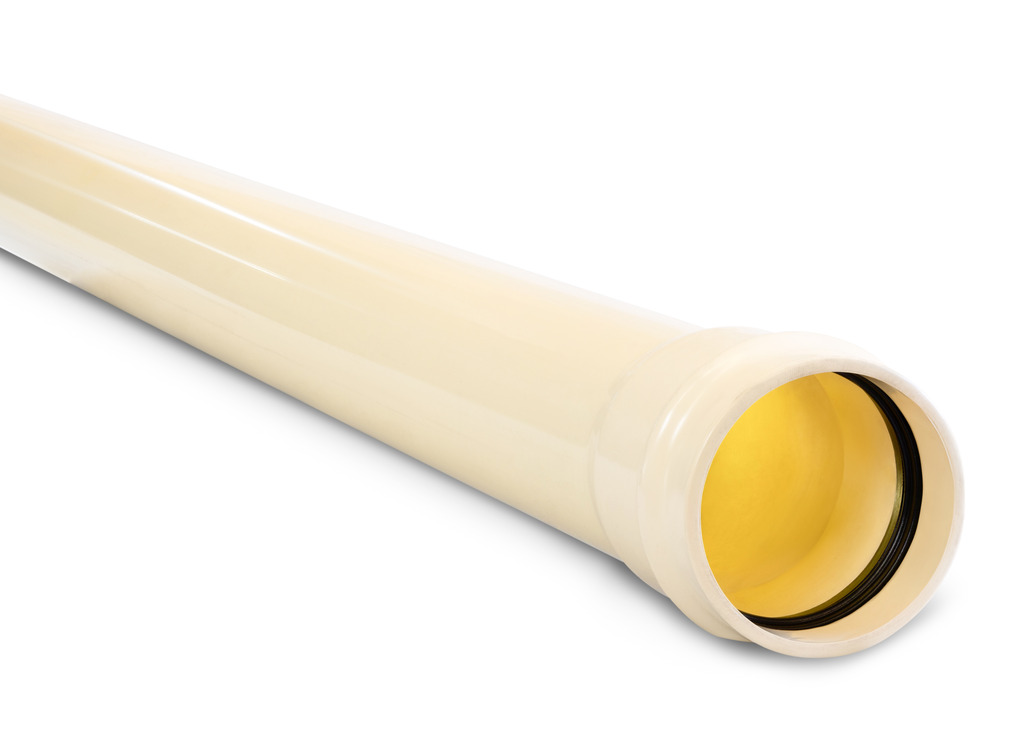

150 PN16 PRESS S2 PIPE RRJX6M CREAM OPVC
