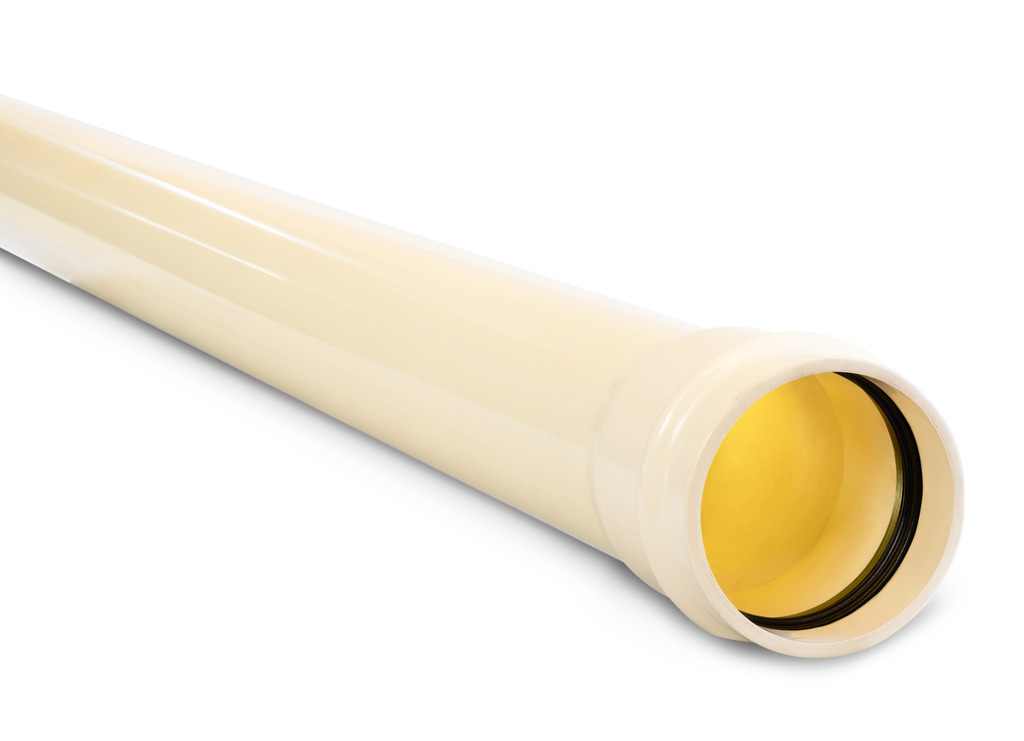

DN100 x 6m PN16 Apollo Cream Series 2 PVC-O Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDRAC16100

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Excellent Toughness and Ductility
  • Large Internal Diameter and Smooth bore
Product Data Sheet Artboard View
Product Properties
Size 100MM
Rating PN16
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM
Colour Cream
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 42
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1600kPa
Minimum Radius of Curvature 30m
Socket Deflection
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 4000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 28MPa
Ring Bending Modulus - 3mins 4000MPa
Ring Bending Modulus - 50yrs 1800MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 2
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 2
Dimensions
Size 100MM
Inner Diameter 114.9mm
Weight 12.5kg
Crate Qty 36
Crate Weight 450kg
Wall Thickness 3.4mm
Socket Depth 150mm
Standards & Accreditations
Product Standard AS/NZS 4441
Product Approvals and Appraisals Artboard View
Environmental Accreditation Artboard View    Artboard View
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
