450 PN20 PRESS S2 PIPE RRJX6M BLUE MPVC CW RIEBER RING

DN450 x 6m PN20 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDHR20450

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive
Product Data Sheet Artboard View
Product Properties
Size 450MM
Rating PN20
Length 6.0M
Primary Material PVC
UOM LENGTHS
Rubber Ring Material EPDM
Colour Blue
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 5
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 2000kPa
Minimum Radius of Curvature 135m
Socket Deflection 1°
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 38MPa
Yield Strain 5.50%
Compressive Strength 48MPa
Tensile Modulus 3000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 17.5MPa
Ring Bending Modulus - 3mins 3000MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 2
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 2
Dimensions
Size 450MM
Weight 405kg
Crate Qty 2
Crate Weight 810kg
Socket Depth 289.2mm
Chamfer Detail 36mm
Witness Mark Detail 309mm
CAD PDF Artboard View
450 PN20 PRESS S2 PIPE RRJX6M BLUE MPVC CW RIEBER RING
Standards & Accreditations
Product Standard AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
Product Approvals and Appraisals StandardsMark Certifications SMK02730.4, SMK02468.4 & SMK02748
Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
POP Documents https://www.iplex.com.au/resources-and-tools/pipa-guidelines-and-notes/
Warranty 1 Year

Learn more about our
PVC-M products

LEARN MORE ENQUIRE

PVC-M

Complimentary products you may be interested in...

product-slider-prev product-slider-next
450X11.25 DI BEND S2 SOCNC PN35

450X11.25 DI BEND S2 SOCNC PN35

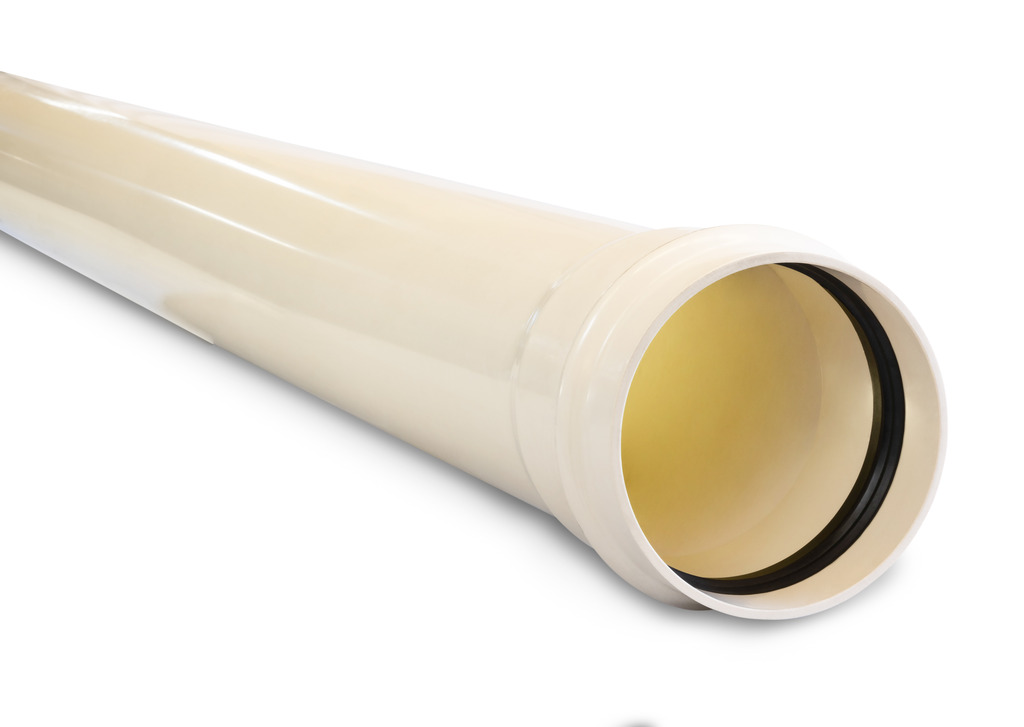

250 PN16 PRESS S2 PIPE RRJX6M CREAM MPVC CW RIEBER RING
