DN300 x 6m PN12.5 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ
Enquire Download Product Sheet
PDHR12300
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Light weight
- Electrically nonconductive
Product Data Sheet
View
Product Properties
Size
300MM
Rating
PN12.5
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".
Colour
Blue
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
10
Allowable Operating Temperature - Degrees
50℃
Allowable Operating Pressure - 20 Degrees Celsius
1200KPa
Minimum Radius of Curvature
90m
Socket Deflection
1°
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
Iplex Rhino®
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
38MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
3000MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
17.5MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138 W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
>79℃
Flammability
Will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2
Dimensions
Size
300MM
Inner Diameter
321.0mm
Weight
114kg
Crate Qty
6
Crate Weight
684kg
Wall Thickness
12.2mm
Socket Depth
219.2mm
Chamfer Detail
30mm
Witness Mark Detail
237mm

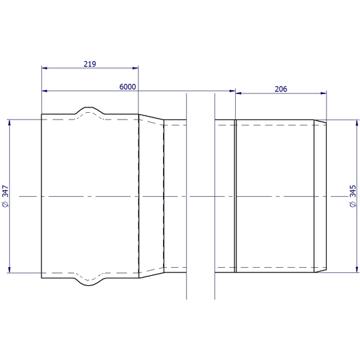

CAD PDF
View
Standards & Accreditations
Product Standard
AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
Product Approvals and Appraisals
StandardsMark Certifications SMK02730.4, SMK02468.4 & SMK02748
Environmental Accreditation
Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
Learn more about our
PVC-M products

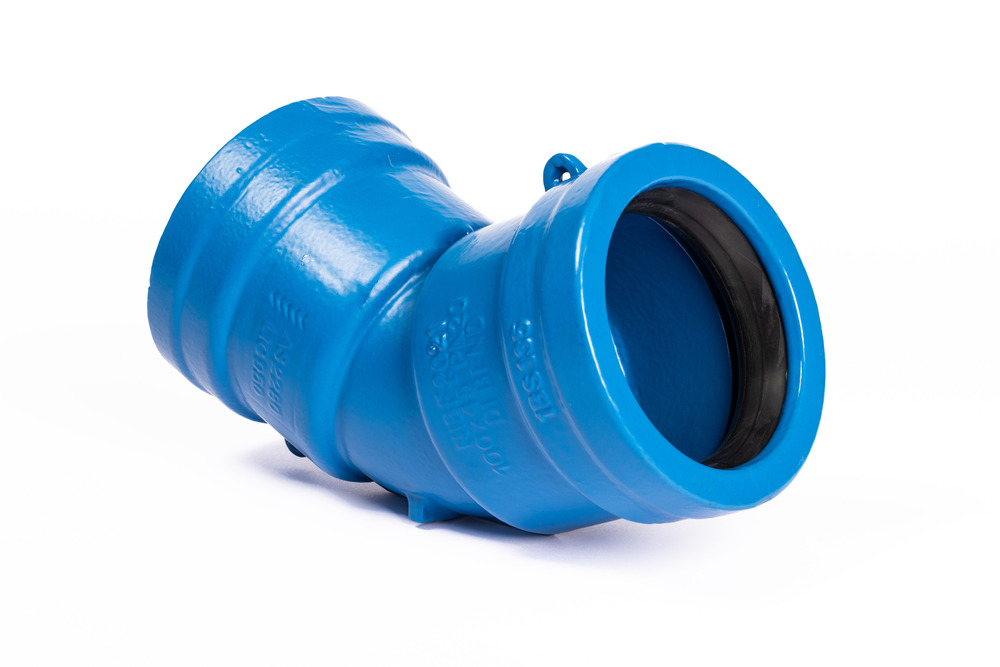

Complimentary products you may be interested in...
