200 PN16 PRESS S2 PIPE RRJX6M CREAM MPVC CW RIEBER RING

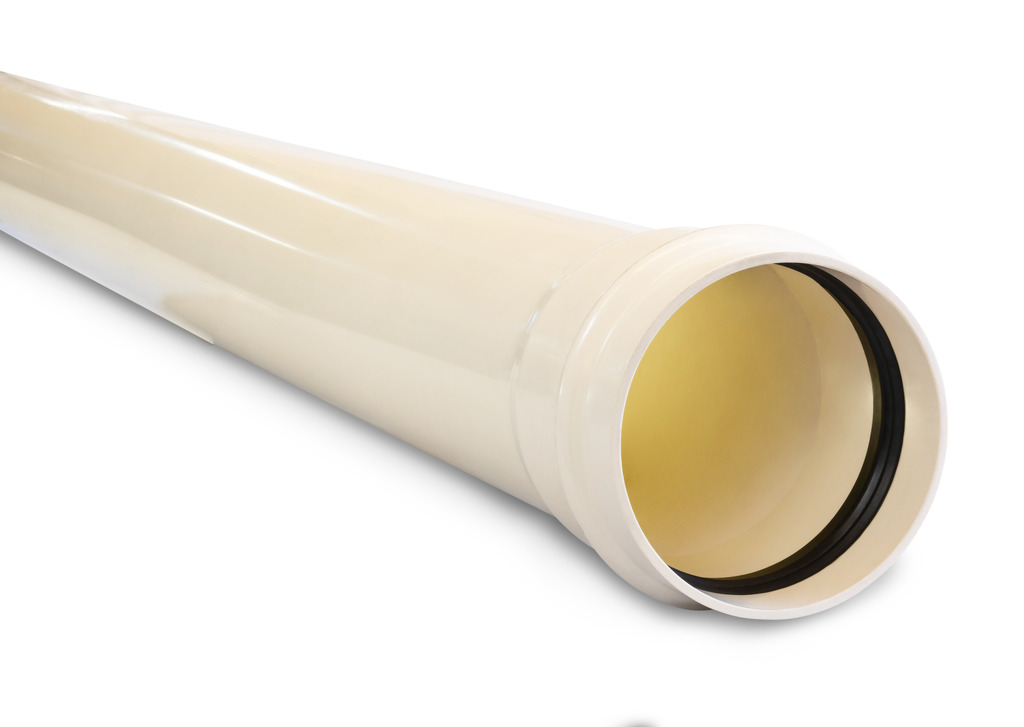

DN200 x 6m PN16 Cream Rhino Series 2 PVC-M Pipe Rieber RRJ

Enquire Download Product Sheet

Enquire

PDHRC16200

Overview

Australian Made
BEP PVC - Manufactured from Best Environmental Practice PVC
Installation economics
Operation efficiencies
Corrosion resistant
Light weight
Electrically nonconductive

Product Data Sheet View

Product Properties

Size 200MM

Rating PN16

Length 6.0M

Primary Material PVC

UOM LENGTHS

Joint Type RRJ

Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".

Colour Cream

Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm

Average Number of Joints per Litre-Iplex Lubricant 16

Allowable Operating Temperature - Degrees 50℃

Allowable Operating Pressure - 20 Degrees Celsius 1600kPa

Minimum Radius of Curvature 60m

Socket Deflection 1°

Maximum Diametric Deflection - 50yrs 7.50%

Unprotected UV Exposed 2 Years

Maximum Support Spacing of Pipe Graded 1.5m

Maximum Support Spacing of Pipe Vertical 3.0m

Markings Material/Size/PN or SN rating/Applicable Australian Standard

Industry Specific Names Iplex Rhino®

Mechanical Properties

Density - Specific Gravity 1.47 kg/m³

Ultimate Tensile Strength 38MPa

Yield Strain 5.50%

Compressive Strength 66MPa

Tensile Modulus 3000MPa

Hardness Shore D 85

Poissons Ratio 0.38

Design Stress 17.5MPa

Ring Bending Modulus - 3mins 3000MPa

Ring Bending Modulus - 50yrs 1200MPa

Thermal Properties

Coefficient of Thermal Expansion 7 x 10^-5/℃

Thermal Conductivity 0.138 W/m.K

Specific Heat 1047 J/kg/℃

Vicat Softening Temperature >79℃

Flammability Will not support combustion

Fire Index - Ignitability 7

Fire Index - Smoke Developed 9

Fire Index - Heat Evolved 2

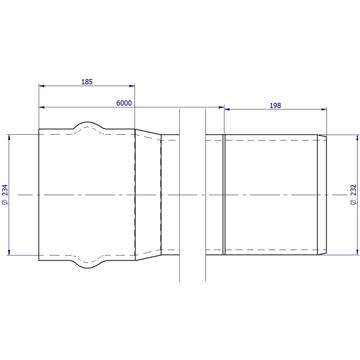

Dimensions

Size 200MM

Inner Diameter 210.7mm

Weight 67kg

Crate Qty 10

Crate Weight 670kg

Wall Thickness 10.8mm

Socket Depth 185mm

Chamfer Detail 24mm

Witness Mark Detail 203mm

CAD PDF View

Standards & Accreditations

Product Standard AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"

Product Approvals and Appraisals StandardsMark Certifications SMK02730.4, SMK02468.4 & SMK02748

Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037

POP Documents PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 Year
