150 PN18 PRESS S2 PIPE RRJX6M BLUE MPVC CW RIEBER RING

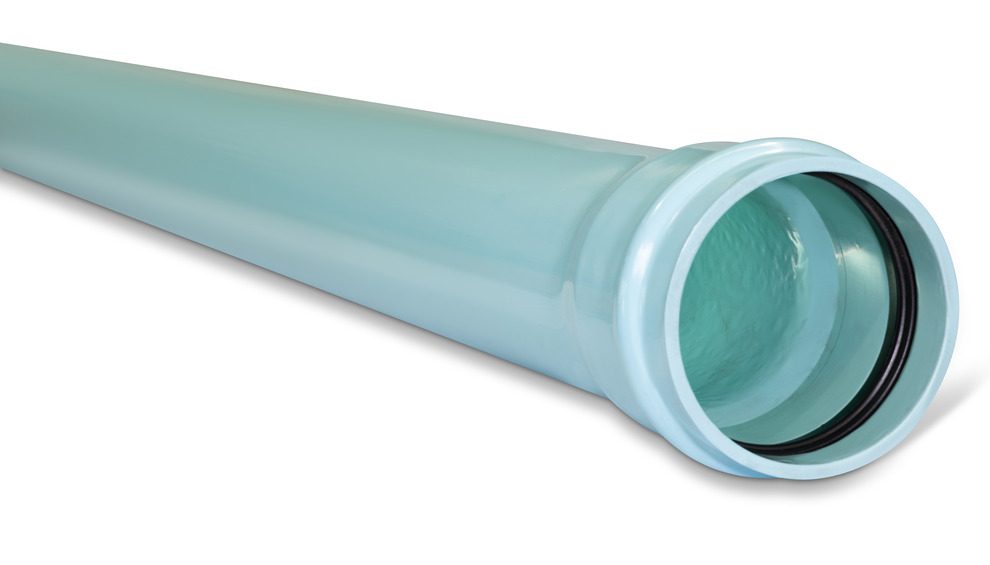

DN150 x 6m PN18 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ

Enquire Download Product Sheet

Enquire

PDHR18150

Overview

Australian Made
BEP PVC - Manufactured from Best Environmental Practice PVC
Installation economics
Operation efficiencies
Corrosion resistant
Light weight
Electrically nonconductive

Product Data Sheet View

Product Properties

Size 150MM

Rating PN18

Length 6.0M

Primary Material PVC

UOM LENGTHS

Joint Type RRJ

Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".

Colour Blue

Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm

Average Number of Joints per Litre-Iplex Lubricant 25

Allowable Operating Temperature - Degrees 50℃

Allowable Operating Pressure - 20 Degrees Celsius 1800kPa

Minimum Radius of Curvature 45m

Socket Deflection 1°

Maximum Diametric Deflection - 50yrs 7.50%

Unprotected UV Exposed 2 Years

Maximum Support Spacing of Pipe Graded 1.2m

Maximum Support Spacing of Pipe Vertical 2.0m

Markings Material/Size/PN or SN rating/Applicable Australian Standard

Industry Specific Names Iplex Rhino®

Mechanical Properties

Density - Specific Gravity 1.47 kg/m³

Ultimate Tensile Strength 38MPa

Yield Strain 5.50%

Compressive Strength 66MPa

Tensile Modulus 3000MPa

Hardness Shore D 85

Poissons Ratio 0.38

Design Stress 17.5MPa

Ring Bending Modulus - 3mins 3000MPa

Ring Bending Modulus - 50yrs 1200MPa

Thermal Properties

Coefficient of Thermal Expansion 7 x 10^-5/℃

Thermal Conductivity 0.138 W/m.K

Specific Heat 1047 J/kg/℃

Vicat Softening Temperature >79℃

Flammability Will not support combustion

Fire Index - Ignitability 7

Fire Index - Smoke Developed 9

Fire Index - Heat Evolved 2

Dimensions

Size 150MM

Inner Diameter 159.0mm

Weight 43kg

Crate Qty 18

Crate Weight 774kg

Wall Thickness 9.2mm

Socket Depth 161.6mm

Chamfer Detail 20mm

Witness Mark Detail 176mm

CAD PDF View

Standards & Accreditations

Product Standard AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"

Product Approvals and Appraisals StandardsMark Certifications SMK02730.4, SMK02468.4 & SMK02748

Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037

POP Documents PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 Year

Learn more about our
PVC-M products

LEARN MORE ENQUIRE

Complimentary products you may be interested in...

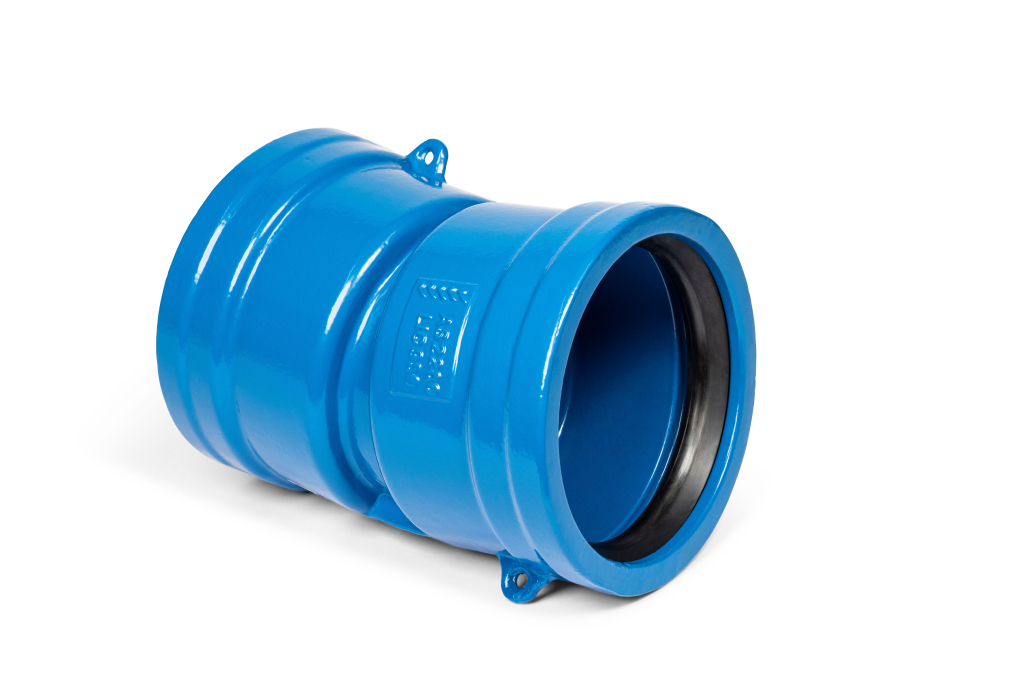

150X11.25 DI SL BEND S2 SOCNC PN20
