DN90 x DN65 Stormwater PVC-U Round Adaptor SWJ
Enquire Download Product Sheet
W1619065V
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
Product Data Sheet
View
Product Properties
Size
90MM
Rating
SN2
Length
BLANK
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
60
Average Number of Joints per Litre - Iplex Primer
180
Cure Time for Solvent Weld Joints
24hrs
Unprotected UV Exposed
2 Years
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
151.25MPa
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
75℃
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1
Dimensions
Size
90MM
Inner Diameter
90mm
Weight
0.09kg
Carton Qty
170
Carton Weight
15.3kg
Wall Thickness
1.9mm
Socket Depth
30mm

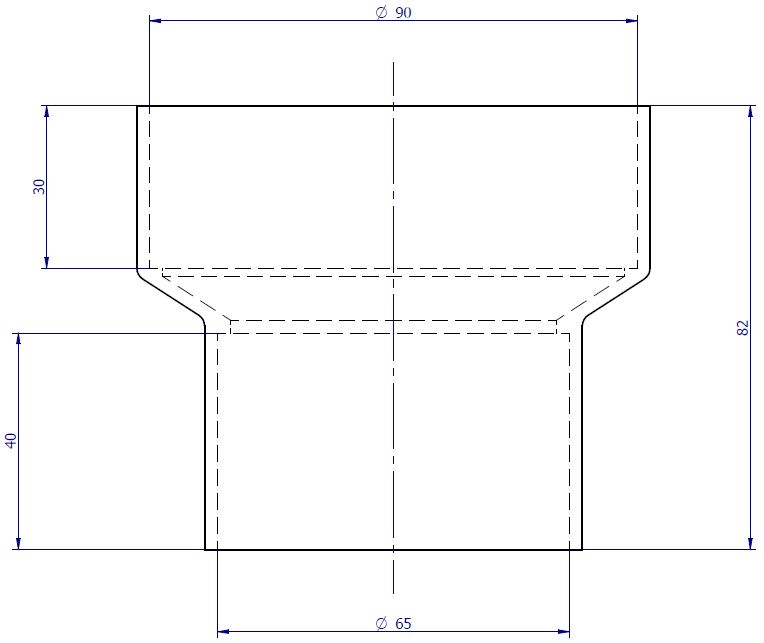

CAD PDF
View
Standards & Accreditations
Product Standard
AS/NZS 1254
Environmental Accreditation
Best Environmental PVC - PVC Certificate No. BEP-PVC 0037
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
