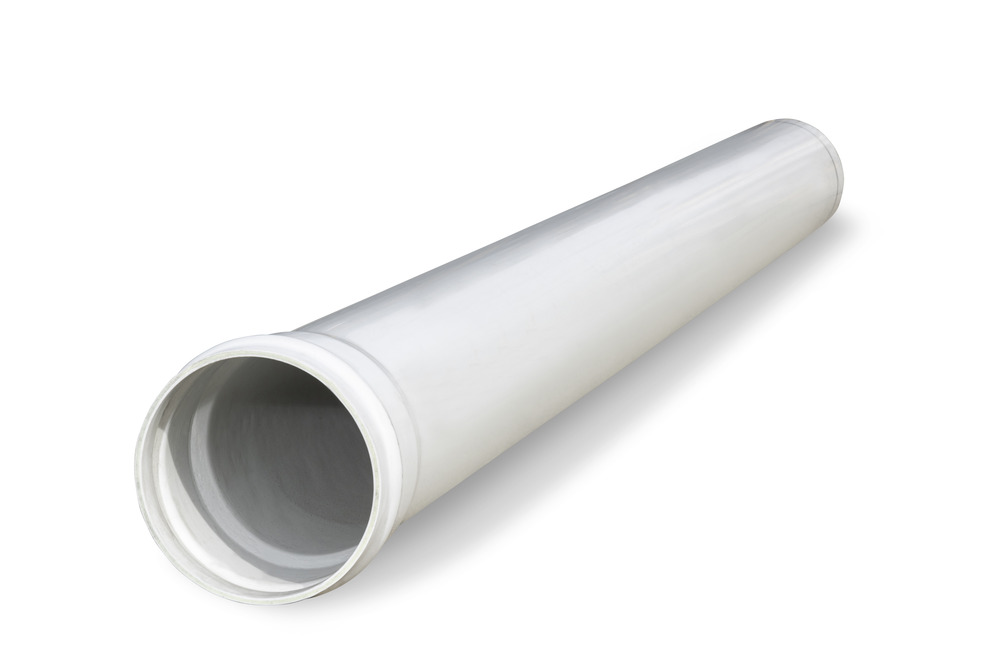

DN225 x 3m SN8 DWV PVC-U Pipe RRJ

Enquire

DRME225C

Overview

Australian Made
BEP PVC - Manufactured from Best Environmental Practice PVC
Installation economics
Operation efficiencies
Corrosion resistant
Tree root intrusion resistant
Leakage elimination

Product Properties

Size 225MM

Rating SN8

Length 3.0M

Primary Material PVC

UOM LENGTHS

Joint Type Rubber Ring Joint

Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".

Colour Light Grey

Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm

Average Number of Joints per Litre-Iplex Lubricant 14

Allowable Operating Temperature - Degrees 60℃

Minimum Radius of Curvature 67.5m

Socket Deflection 1°

Maximum Diametric Deflection - 50yrs 7.50%

Unprotected UV Exposed 2 Years

Maximum Support Spacing of Pipe Graded 1.5m

Maximum Support Spacing of Pipe Vertical 3.0m

Markings Material/Size/PN or SN rating/Applicable Australian Standard

Industry Specific Names Drain Waste & Vent (DWV)

Mechanical Properties

Density - Specific Gravity 1.47 kg/m³

Ultimate Tensile Strength 52MPa

Yield Strain 5.50%

Yield Stress 176MPa

Compressive Strength 66MPa

Tensile Modulus 3200MPa

Hardness Shore D 85

Poissons Ratio 0.38

Design Stress 12.3MPa

Ring Bending Modulus - 3mins 3200MPa

Ring Bending Modulus - 50yrs 1400MPa

Thermal Properties

Coefficient of Thermal Expansion 7 x 10^-5/℃

Thermal Conductivity 0.138 W/m.K

Specific Heat 1047 J/kg/℃

Vicat Softening Temperature 75℃

Flammability Will not support combustion

Fire Index - Ignitability 8

Fire Index - Smoke Developed 8

Fire Index - Heat Evolved 1

Dimensions

Size 225MM

Crate Qty 12

Crate Weight 309.6kg

Wall Thickness 7.2mm

Standards & Accreditations

Product Standard AS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"

Product Approvals and Appraisals WaterMark Certification: WMKA1275
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"

Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037

POP Documents PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 Year
