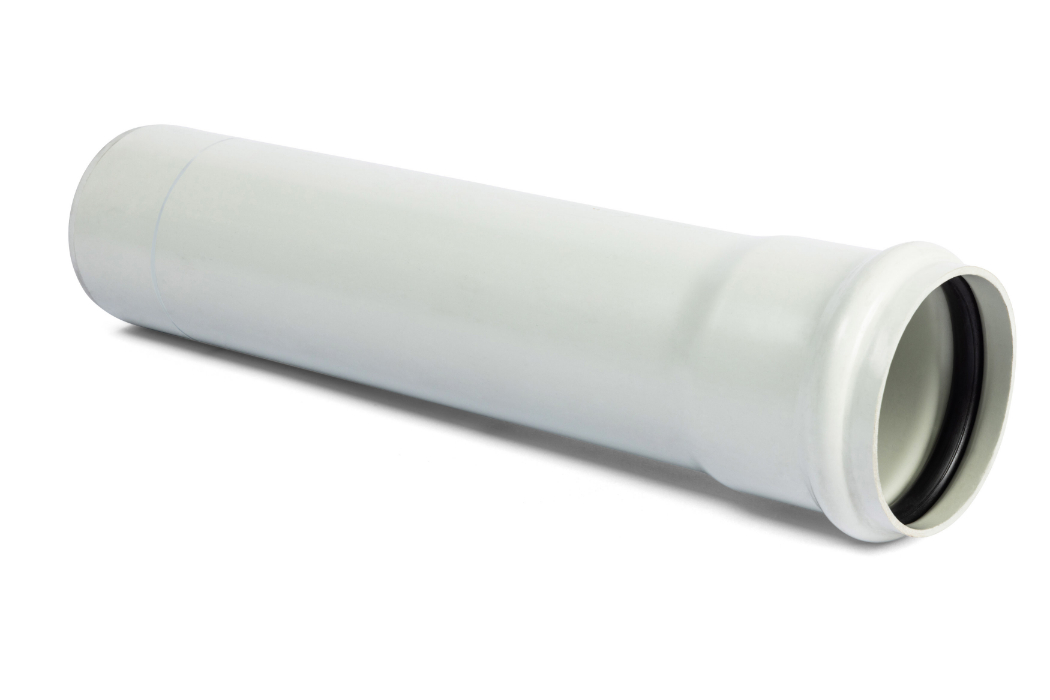

150 EH DWV PIPE MF X0.5M SHORT CW 1XRRJ
Enquire Download Product Sheet
DR60EH150E
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size
150MM
Length
0.5M
Primary Material
PVC
UOM
EACH
Joint Type
RRJ
Rubber Ring Material
EPDM
Colour
White
Cure Time for Solvent Weld Joints
24hrs
Socket Deflection
1°
Mechanical Properties
Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
75℃
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1
Dimensions
Size
150MM
Carton Qty
4
Standards & Accreditations
Product Standard
AS/NZS 1260 PVC-U pipes and fittings for drain, waste and vent applications
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
