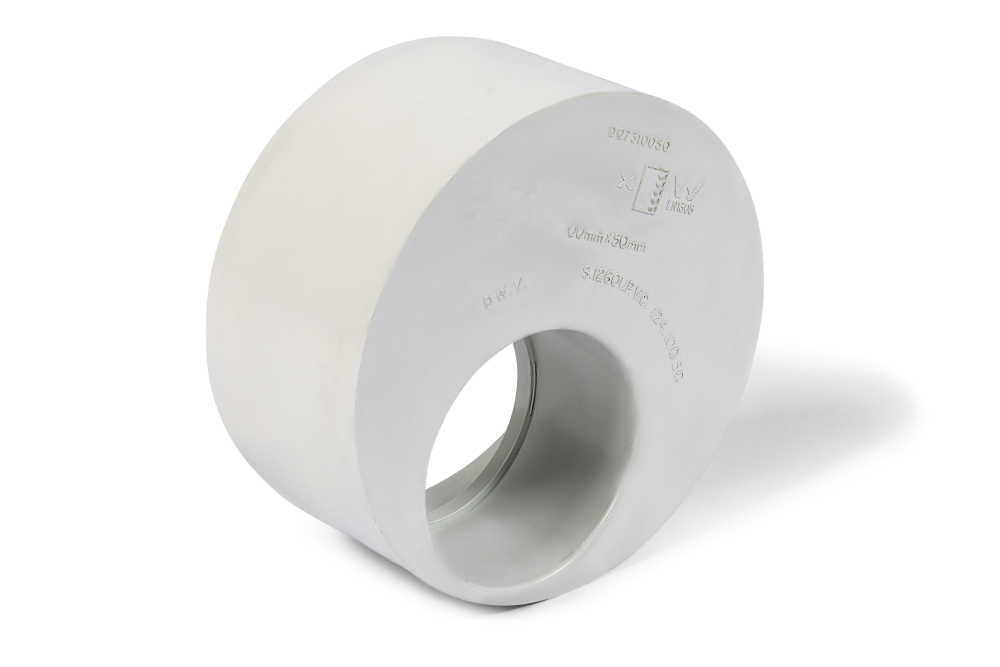

DN100 x DN50 DWV PVC-U Socket Reducer SWJ

Enquire Download Product Sheet

Enquire

D07310050

Overview

Australian Made
BEP PVC - Manufacutred from Best Environmental Practice PVC
Installation Economics
Operation Efficiences
Corrosion Resistant
Treet root intrusion resistance
Leakage Elimination

Product Data Sheet View

Product Properties

Size 100MM

Length BLANK

Primary Material PVC

UOM EACH

Joint Type SWJ

Colour Grey

Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm

Average Number of Joints per Litre - Iplex Solvent 26

Average Number of Joints per Litre - Iplex Primer 78

Cure Time for Solvent Weld Joints 24hrs

Allowable Operating Temperature - Degrees 60℃

Unprotected UV Exposed 2 Years

Product Certifications

WaterMark 1305

Mechanical Properties

Density - Specific Gravity 1.47 kg/m³

Ultimate Tensile Strength 52MPa

Yield Strain 5.50%

Yield Stress 151.25MPa

Compressive Strength 66MPa

Tensile Modulus 2750MPa

Hardness Shore D 85

Poissons Ratio 0.38

Ring Bending Modulus - 3mins 3200MPa

Ring Bending Modulus - 50yrs 1400MPa

Thermal Properties

Coefficient of Thermal Expansion 7 x 10^-5/℃

Thermal Conductivity 0.138W/m.K

Specific Heat 1047 J/kg/℃

Vicat Softening Temperature 75℃

Flammability Will not support combustion

Fire Index - Ignitability 8

Fire Index - Smoke Developed 8

Fire Index - Heat Evolved 1

Dimensions

Size 100MM

Weight 0.14kg

Carton Qty 87

Carton Weight 12.09kg

Standards & Accreditations

Product Standard AS/NZS 1260 "PVC-U pipes and fittings for drain, waste and vent applications"

Product Approvals and Appraisals WaterMark Certification: WMKA1305
WSSA PA 1625 "Iplex Premium PVC-U DWV pipes and fittings for non-pressure drainage applications"

Environmental Accreditation Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037

POP Documents PIPA Guidelines & Notes (iplex.com.au)

Warranty 1 Year
