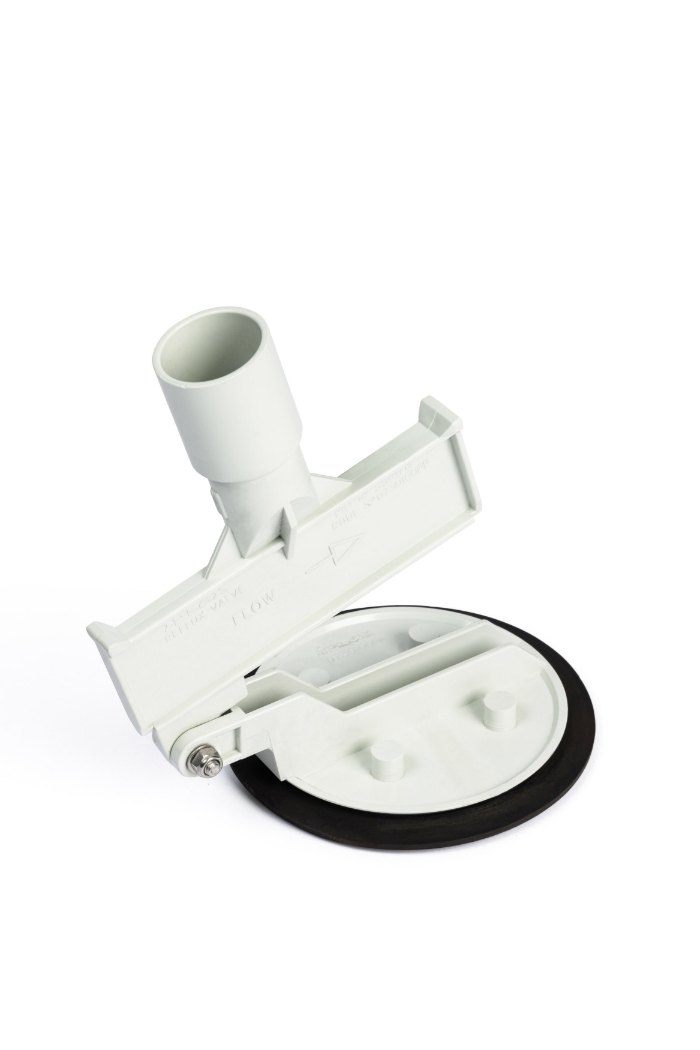

100 DWV VALVE FLAP ASSY REFLUX MLD
Enquire Download Product Sheet
D730100FLP
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size
100MM
Length
BLANK
Primary Material
OTHER
UOM
EACH
Joint Type
SWJ
Colour
White
Cure Time for Solvent Weld Joints
24hrs
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Yield Stress
151.25MPa
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
75℃
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
1
Dimensions
Size
100MM
Standards & Accreditations
Product Standard
AS/NZS 1260 PVC-U pipes and fittings for drain, waste and vent applications
POP Documents
this will be html linking to new website
Warranty
1 Year
