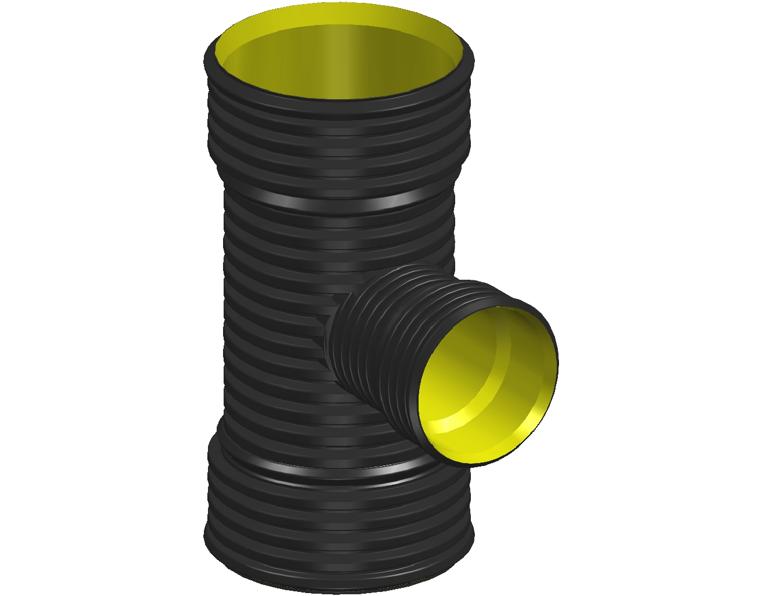

DN450 X dn300 BlackMax® Reducing Tee FFF RRJ (PP Fab)
GR25453090
Overview
- Australian Made
- Abrasion and Corrosion Resistant
- Treet root intrusion resistance
- Smooth internal bore for hydraulic performance
- Low embodied energy for environmental benefits
Additional Information
Requires 2 x DN450 BlackMAX® Rubber Rings Iplex Code: GERSEW450 and 1 x DN300 BlackMAX® Rubber ring GERSEW300
Product Properties
Size
450MM
Rating
SN8 / Non Pressure
Length
BLANK
Degree
90
Primary Material
POLYPROPYLENE
UOM
EACH
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with yellow internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant
18
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection
up to 2°
Markings
Manufactures name and/or registered trademark > Nominal Size > Stiffness> PP > Date of Manufacture > Place of Manufacture

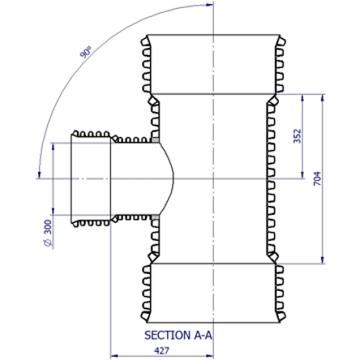

Dimensions
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
