DN450 x 3m SN8 BlackMax® Drainage Pipe RRJ
Enquire Download Product Sheet
GR8450C
Overview
- Australian Made
- Installation Economics
- Operation Efficiences
- Abrasion and Corrosion Resistant
- Treet root intrusion resistance
- Smooth bore for hydraulic performance
- Low embodied energy for environmental benefits
Additional Information
Requires DN450 Rubber Ring Iplex Code: GERSEW450
Product Data Sheet
View
Product Properties
Size
450MM
Rating
SN8
Length
3.0M
Primary Material
POLYPROPYLENE
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
SBR
Colour
Black with yellow internal liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
18
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection
2°
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
2.5m
Maximum Support Spacing of Pipe Vertical
5m
Markings
Iplex Pipelines, DN, SN8, PP, Date of Manufacture, BlackMAX®
Product Certifications
Standards Mark and Water Mark to AS/NZS 5065
Mechanical Properties
Density - Specific Gravity
0.90
kg/m3
Yield Strain
6%
Tensile Modulus
28 MPa
Hardness Shore D
60
Poissons Ratio
0.45
Ring Bending Modulus - 3mins
1300MPa
Ring Bending Modulus - 50yrs
342 MPa
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5/℃
Thermal Conductivity
0.22W/m.K
Specific Heat
1920 J/kg/℃
Vicat Softening Temperature
95
Flammability
Flammable
Dimensions
Size
450MM
Inner Diameter
447
Weight
38
Crate Qty
2
Crate Weight
76kg
Wall Thickness
2.8
Socket Depth
222
Witness Mark Detail
222
Profile Pitch
49.8

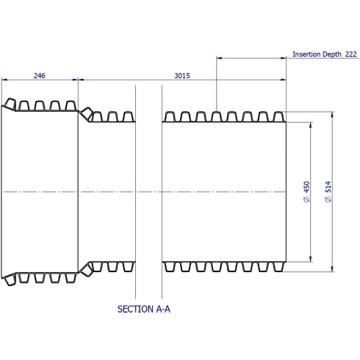

CAD PDF
View
Standards & Accreditations
Product Standard
AS/NZS 5065
Product Approvals and Appraisals
StandardsMark Certification SMKP20603
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
I Year
