DN225 x 6m SN8 BlackMax® Drainage Pipe RRJ
Enquire Download Product Sheet
GR8225
Overview
- Australian Made
- Lightweight and safer to install
- Operational efficiencies
- Abrasion and Corrosion Resistant
- Resistant to root intrusion
- Smooth bore for hydraulic performance
- Low embodied energy for environmental benefits
- High performance rubber ring joint
Additional Information
Requires DN225 Rubber Ring Iplex Code: GERSEW225
Product Data Sheet
View
Product Properties
Size
225MM
Rating
SN8
Length
6.1M
Primary Material
POLYPROPYLENE
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
SBR
Colour
Black with yellow internal liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
36
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Minimum Radius of Curvature
172m
Socket Deflection
2°
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.6m
Maximum Support Spacing of Pipe Vertical
3.2m
Markings
Iplex Pipelines, DN, SN8, PP, Date of Manufacture, BlackMAX®
Mechanical Properties
Density - Specific Gravity
0.90
kg/m3
Yield Strain
8%
Tensile Modulus
31 MPa
Hardness Shore D
60
Poissons Ratio
0.45
Ring Bending Modulus - 3mins
1300MPa
Ring Bending Modulus - 50yrs
342 MPa
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5/℃
Thermal Conductivity
0.22 W/m.K
Specific Heat
1700 J/kg/℃
Vicat Softening Temperature
157℃
Flammability
Flammable

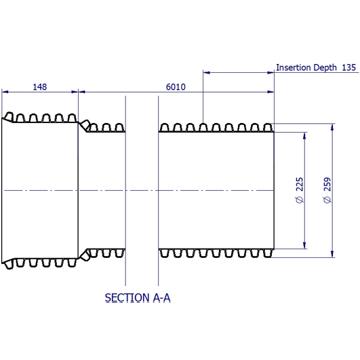

Dimensions
Size
225MM
Inner Diameter
225mm
Weight
21kg
Crate Qty
8
Crate Weight
186kg
Wall Thickness
1.7mm
Socket Depth
135mm
Witness Mark Detail
135
Profile Pitch
25mm
CAD PDF
View
Standards & Accreditations
Product Standard
AS/NZS 5065 “Polyethylene and polypropylene pipes & fittings for drainage & sewerage applications”
Product Approvals and Appraisals
StandardsMark Certification SMKP20603
Creep Ratio
3
Environmental Accreditation
View
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
I Year
