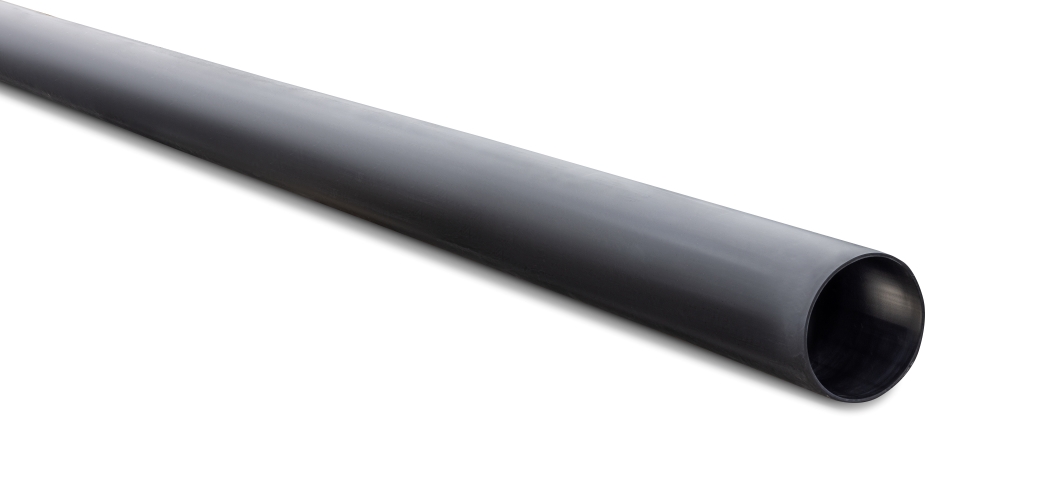

250 SDR41 POLY PE100 PIPEX20M BLK
POH04250QE
Overview
Product Properties
Size
250MM
Length
20M
Primary Material
POLYETHYLENE
UOM
LENGTHS
Joint Type
Electrofusion, compression, butt-weld, mechanical
Colour
Black
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius
400 kPa @20℃
Minimum Radius of Curvature
Refer Iplex Sales Engineer
Unprotected UV Exposed
99.9% UV stable (black only)
Maximum Support Spacing of Pipe Graded
1.25m (If longer spans required, refer Iplex Sales Engineer)
Maximum Support Spacing of Pipe Vertical
2.50m
Industry Specific Names
poly pipe, PE, polythene, polyethylene pipe, HDPE
Mechanical Properties
Ultimate Tensile Strength
N/A
Yield Strain
10%
Yield Stress
25 MPa
Compressive Strength
32MPa
Tensile Modulus
900 MPa
Hardness Shore D
63
Poissons Ratio
0.4
Design Stress
8 MPa
Thermal Properties
Coefficient of Thermal Expansion
1.8 x 10-4/℃
Thermal Conductivity
0.38W/m.K
Specific Heat
1.9 kJ/kg.K ℃
Vicat Softening Temperature
116℃
Flammability
Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability
13
Fire Index - Smoke Developed
3
Fire Index - Spread of Flame
7
Fire Index - Heat Evolved
6
Dimensions
Size
250MM
Inner Diameter
238.0mm
Wall Thickness
6.2mm
Standards & Accreditations
Product Standard
Manufactured to AS/NZS 4130 from resin complounds complying with AS/NZS 4131
