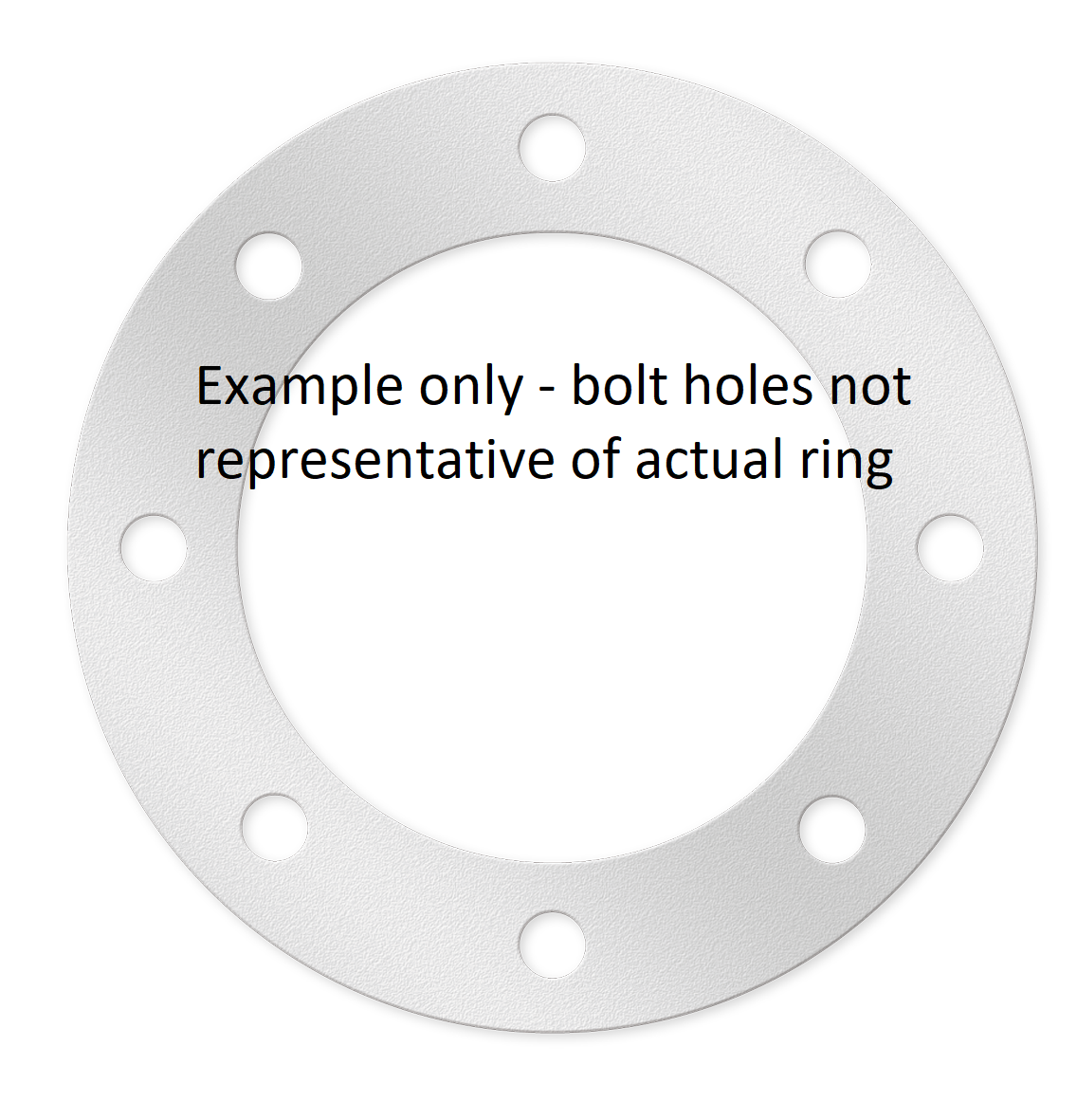

400X16IN AS2129 TABLE E BACKING RING GALVANISED STEEL TO SUIT PE

Enquire

PEBRE400

Overview

Product Properties

Size 400MM

Rating PN14

Length BLANK

Primary Material OTHER

UOM EACH

Unprotected UV Exposed 99.9% UV stable (black only)

Industry Specific Names BACK UP PLATE

Dimensions

Size 400MM

Weight 27.1

Flange OD 580

Flange Thickness 29

Pitch Circle Diameter 521

Number of Bolt Holes 12

Bolt Hole Diameter 26

Standards & Accreditations

Product Standard AS/NZS 2129 "Flanges for pipes, valves and fittings"

Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
WATERMARK WM20303
ISO TS29001
ISO9001 FM 597347.1
WSAA 1127 Part 1&2

Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf

POP Documents https://www.iplex.com.au/assets/Uploads/PIPA-POP001-Electrofusion-Jointing-of-PE-Pipes-and-Fittings-for-Pressure-Applications-Issue-8.0.pdf
