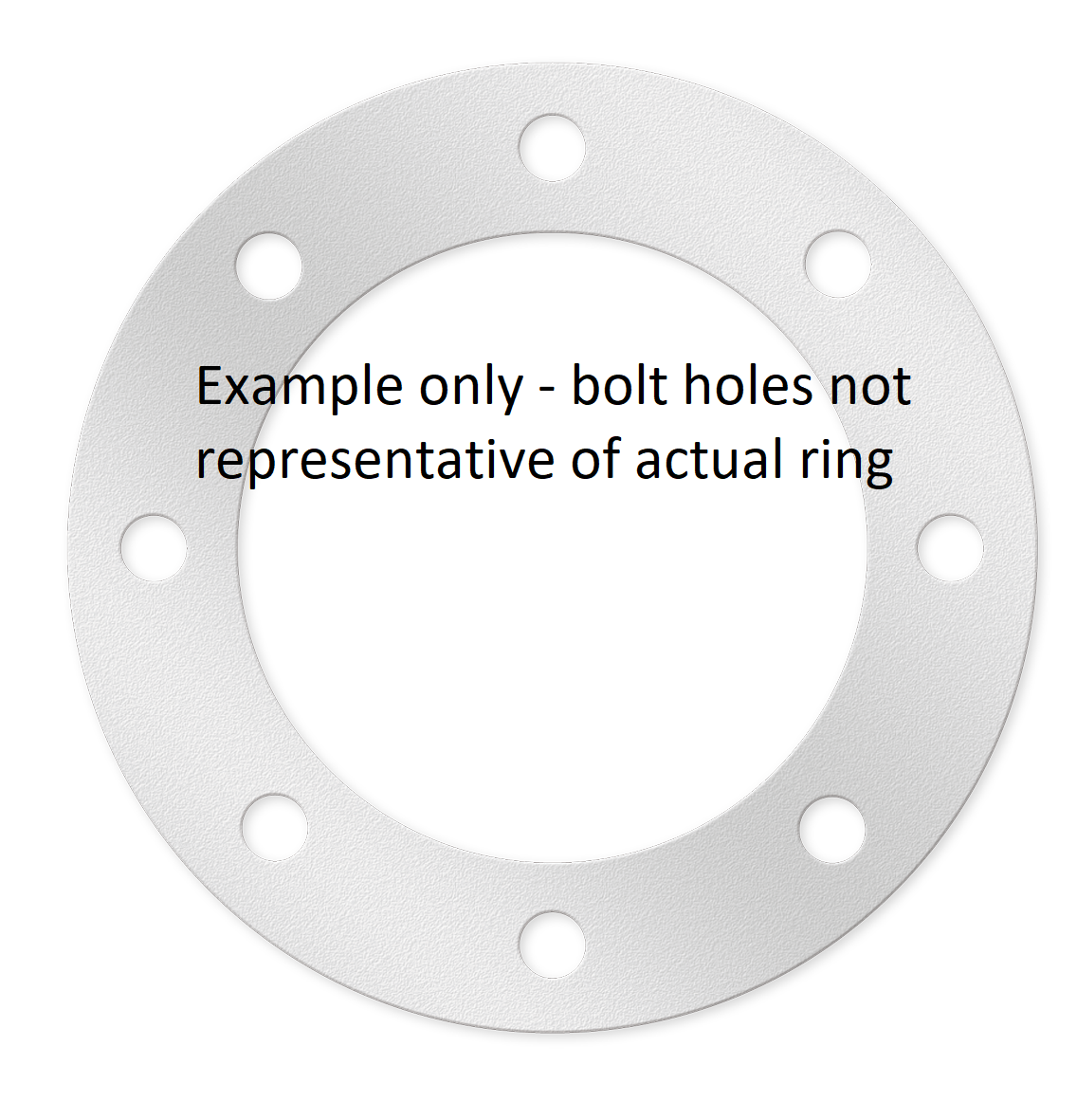

355X14IN ANSI BACKING RING GALVANISED STEEL TO SUIT PE

355X14IN ANSI BACKING RING GALVANISED STEEL TO SUIT PE

Enquire

Enquire



PEBRA355A105

Overview
Product Properties
Size 355MM
Rating PN19
Length BLANK
Primary Material OTHER
UOM EACH
Unprotected UV Exposed 99.9% UV stable (black only)
Product Certifications ISO TYPE 5 - AMI 20303|WATERMARK WM20303|ISO TS29001|ISO9001 FM 597347.1|WSAA 1127 Part 1&2|
Industry Specific Names BACK UP PLATE
Dimensions
Size 355MM
Weight 31.3
Flange OD 35
Flange Thickness 35
Pitch Circle Diameter 476
Number of Bolt Holes 12
Bolt Hole Diameter 476
Standards & Accreditations
Product Standard ASME Flange standard B16.5 "Forged Flanges"
Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
WATERMARK WM20303
ISO TS29001
ISO9001 FM 597347.1
WSAA 1127 Part 1&2
Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf
POP Documents https://www.iplex.com.au/assets/Uploads/PIPA-POP001-Electrofusion-Jointing-of-PE-Pipes-and-Fittings-for-Pressure-Applications-Issue-8.0.pdf
