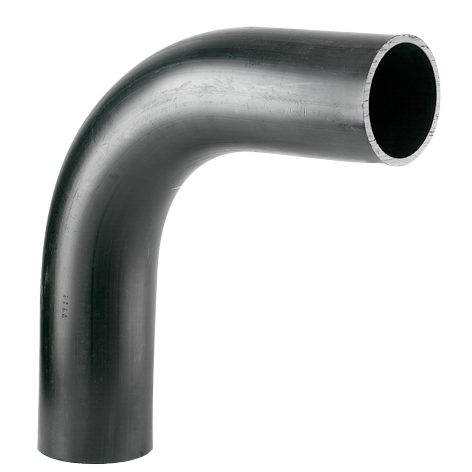

160X90D SDR17 SWEEP BEND POLYETHYLENE (CAN BE 1.5D-3.0D RADIUS)

Enquire

PESW1716090LS

Overview

Lightweight
Easy to use
Inexpensive

Product Properties

Size 160MM

Rating SDR17

Length BLANK

Degree 90

Primary Material POLYETHYLENE

UOM EACH

Unprotected UV Exposed 99.9% UV stable (black only)

Mechanical Properties

Hardness Shore D 63

Thermal Properties

Thermal Conductivity 0.38w/M.k

Dimensions

Size 160MM

Weight 3.7

Standards & Accreditations

Product Standard AS/NZS 4129 "Fittings for polyethylene (PE) pipes for pressure applications"

Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
WATERMARK WM20303
ISO TS29001
ISO9001 FM 597347.1
WSAA 1127 Part 1&2

Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf

POP Documents https://www.iplex.com.au/assets/Uploads/PIPA-POP001-Electrofusion-Jointing-of-PE-Pipes-and-Fittings-for-Pressure-Applications-Issue-8.0.pdf
