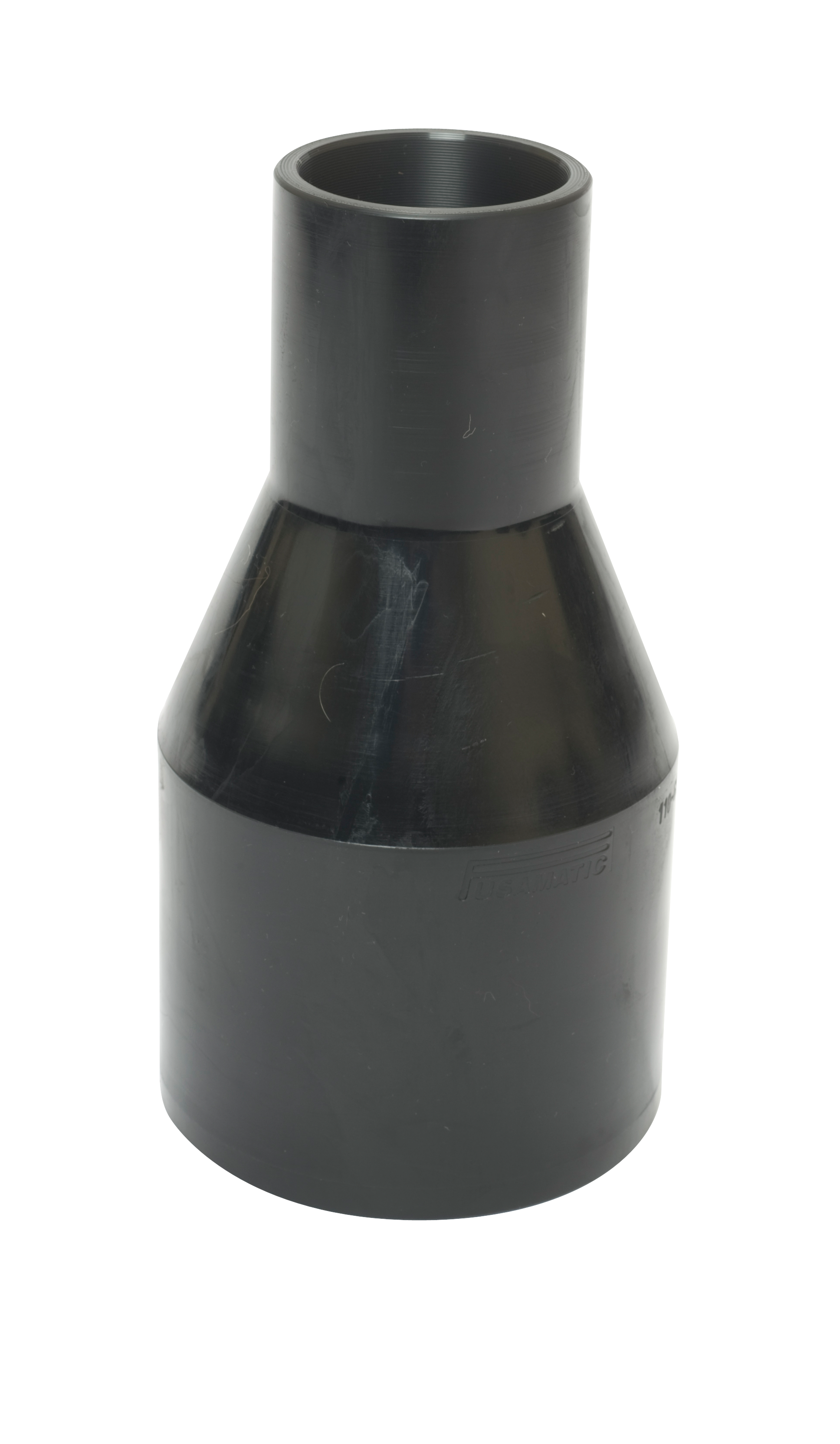

160X90 SDR17 REDUCER CONCENTRIC LONG SPIGOT POLYETHYLENE

Enquire

PER17160090LS

Overview

Lightweight
Easy to use
Inexpensive

Product Properties

Size 160MM

Rating SDR17

Length BLANK

Primary Material POLYETHYLENE

UOM EACH

Joint Type Electrofusion or Butt Weld

Unprotected UV Exposed 99.9% UV stable (black only)

Mechanical Properties

Hardness Shore D 63

Thermal Properties

Thermal Conductivity 0.38w/M.k

Dimensions

Size 160MM

Weight 1

Standards & Accreditations

Product Standard AS/NZS 4129 "Fittings for polyethylene (PE) pipes for pressure applications"

Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
WATERMARK WM20303
ISO TS29001
ISO9001 FM 597347.1
WSAA 1127 Part 1&2

Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf

POP Documents https://www.iplex.com.au/assets/Uploads/PIPA-POP001-Electrofusion-Jointing-of-PE-Pipes-and-Fittings-for-Pressure-Applications-Issue-8.0.pdf
