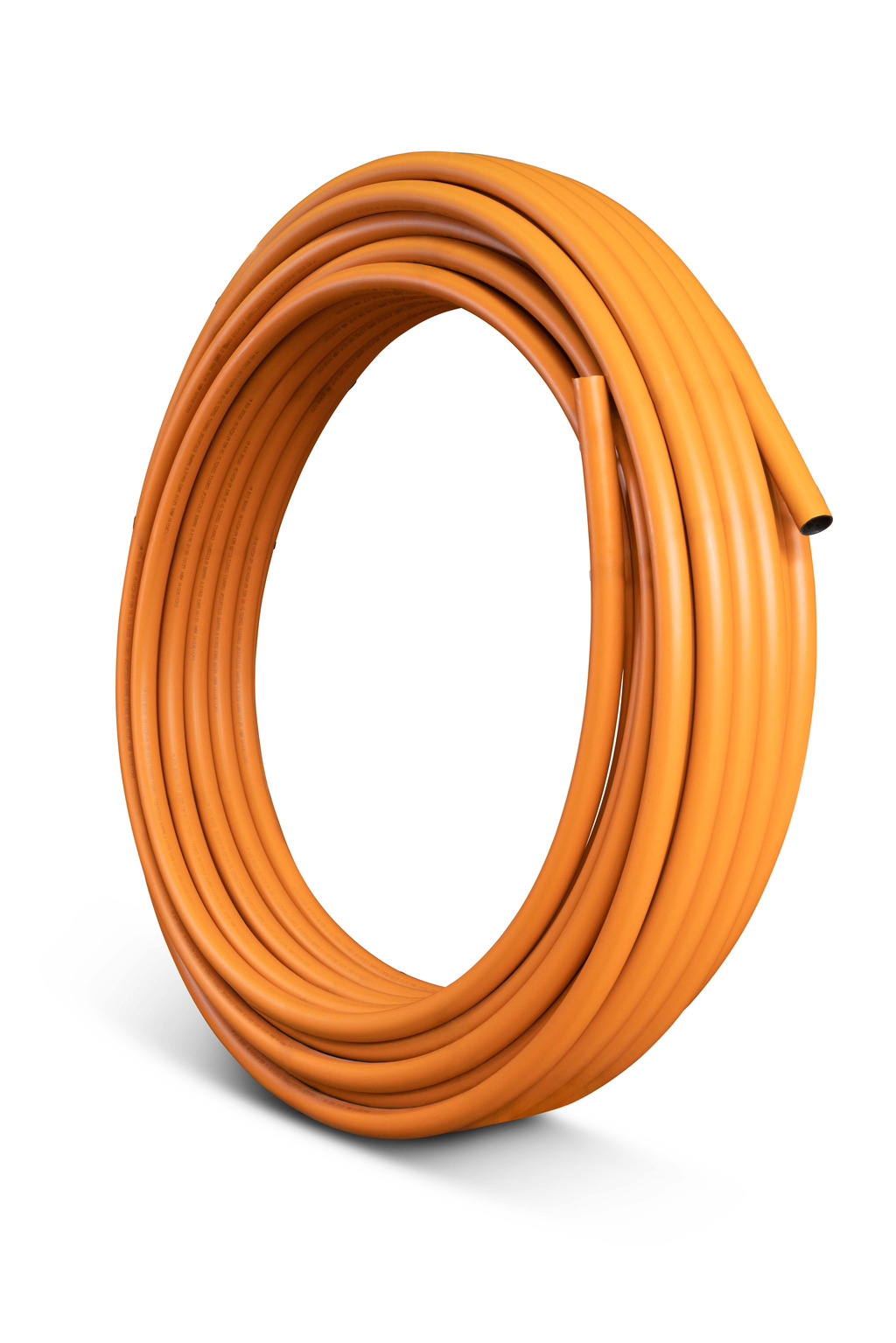

DN140 SDR13.6 PE100 Polyethylene Pipe Electrical Co-Extruded Orange X 100M
EHCX13140100
Overview
Product Properties
Size
140MM
Rating
SDR13.6
Length
100M
Primary Material
POLYETHYLENE
UOM
COIL
Joint Type
Electrofusion, compression, butt-weld, mechanical
Colour
Orange coating
Coating Specification
Orange
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius
1250 kPa @20℃
Minimum Radius of Curvature
21 (x DN) Ref: POP202 Nov2016
Unprotected UV Exposed
2 years in accordance with AS/NZS 2033:2008 "Installation of polyethylene pipe systems"
Maximum Support Spacing of Pipe Graded
0.85m (If longer spans required, refer Iplex Sales Engineer)
Maximum Support Spacing of Pipe Vertical
1.70m
Industry Specific Names
poly pipe, PE, polythene, polyethylene pipe, HDPE
Mechanical Properties
Ultimate Tensile Strength
N/A
Yield Strain
10%
Yield Stress
25 MPa
Compressive Strength
32MPa
Tensile Modulus
900 MPa
Hardness Shore D
63
Poissons Ratio
0.4
Design Stress
8 MPa
Ring Bending Modulus - 3mins
950MPa
Ring Bending Modulus - 50yrs
260MPa
Thermal Properties
Coefficient of Thermal Expansion
1.8 x 10-4/℃
Thermal Conductivity
0.38W/m.K
Specific Heat
1.9 kJ/kg.K ℃
Vicat Softening Temperature
116℃
Flammability
Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability
13
Fire Index - Smoke Developed
3
Fire Index - Spread of Flame
7
Fire Index - Heat Evolved
6
Dimensions
Size
140MM
Inner Diameter
118.9mm
Weight
428kg
Wall Thickness
10.3mm
Standards & Accreditations
Product Standard
Manufactured to AS/NZS 4130 from resin complounds complying with AS/NZS 4131
