DN500 x 5.5m PN20 Irontite Blue ZN/AL Ductile Iron Pipe RRJ Seal Coat
Enquire Download Product Sheet
C3015.0500
Overview
Product Data Sheet
View
Product Properties
Size
500MM
Rating
PN20
Length
5.5M
Primary Material
DUCTILE IRON
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
EPDM (RRJ)
Colour
BLUE/GREEN BAND
Coating Specification
Zinc/Alloy 400g/m3
Lining Specification
Cement
Allowable Operating Temperature - Degrees
50℃
Allowable Operating Pressure - 20 Degrees Celsius
PN20
Socket Deflection
2.5
Mechanical Properties
Density - Specific Gravity
7.10
kg/m3
Ultimate Tensile Strength
450MPa
Poissons Ratio
0.3
Ring Bending Modulus - 3mins
165000N/mm2
Thermal Properties
Coefficient of Thermal Expansion
12.5 x 10-6/℃
Dimensions
Size
500MM
Inner Diameter
531mm
Wall Thickness
8mm
Socket Depth
127mm
Standards & Accreditations
Product Standard
AS/NZS 2280
Product Approvals and Appraisals
Standards Mark SMK0950
WSAA Apprasial PA 1802
WSAA Apprasial PA 1802
Learn more about our

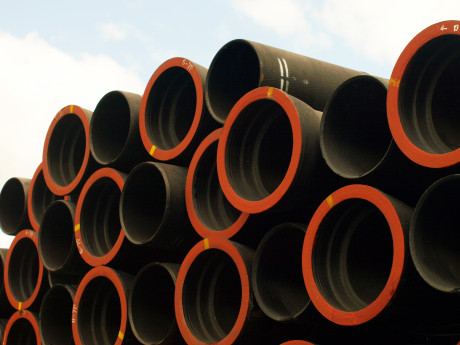

Irontite Ductile Pipe products
