The future is not concrete
We understand that you need to build a sustainable, efficient stormwater solution for generations to come.
Conventional concrete drainage pipes have often been the material of choice for the stormwater landscape. But times are changing.
Welcome to the era of BlackMax — the cutting-edge stormwater management solution engineered for durability, efficiency and sustainability, setting the stage for generations to come.
With a range of stormwater pipes and fittings sizes from DN225 to DN1200*, Iplex offers a complete stormwater solution.
*DN1000 coming soon – for more information contact Iplex
BlackMax Product Range
View the full range

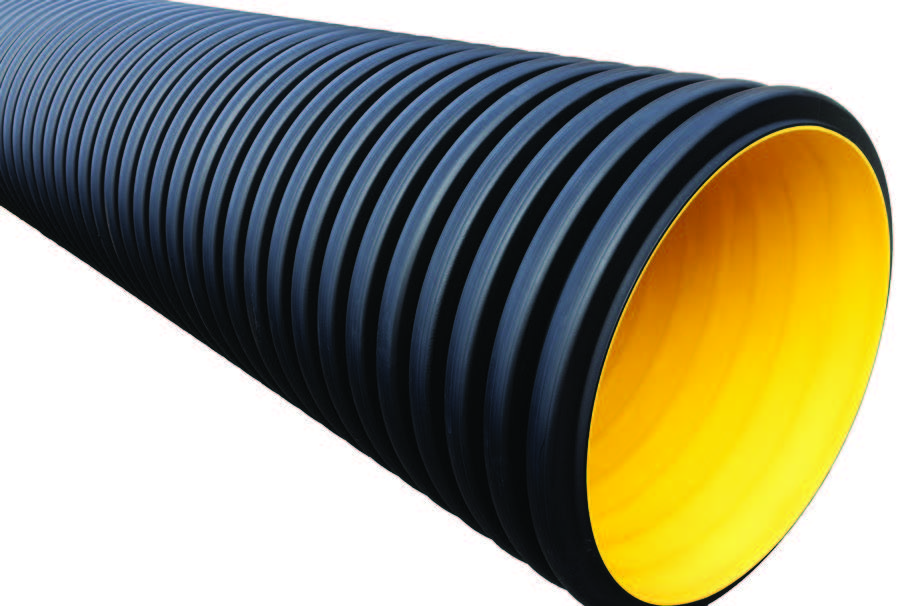

GR81200
BlackMax® PP Pipe SN8 1200 x 6 m RRJ Black with yellow liner
GR8900
BlackMax® PP Pipe SN8 900 x 6 m RRJ Black with yellow liner

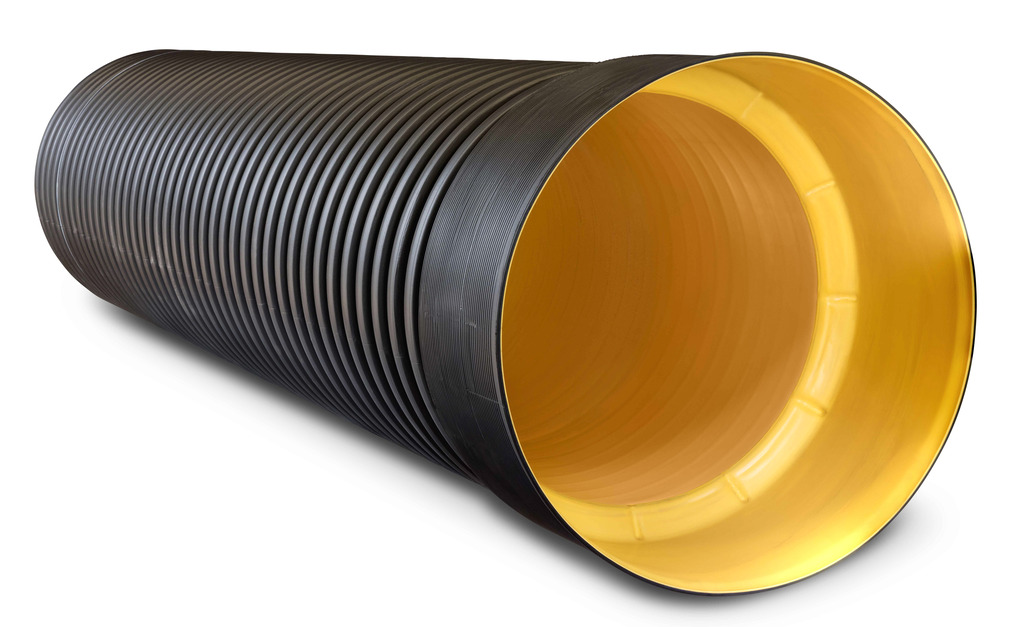

GR8750
BlackMax® PP Pipe SN8 750 x 6 m RRJ Black with yellow liner
GR8600
BlackMax® PP Pipe SN8 600 x 5.9 m RRJ Black with yellow liner

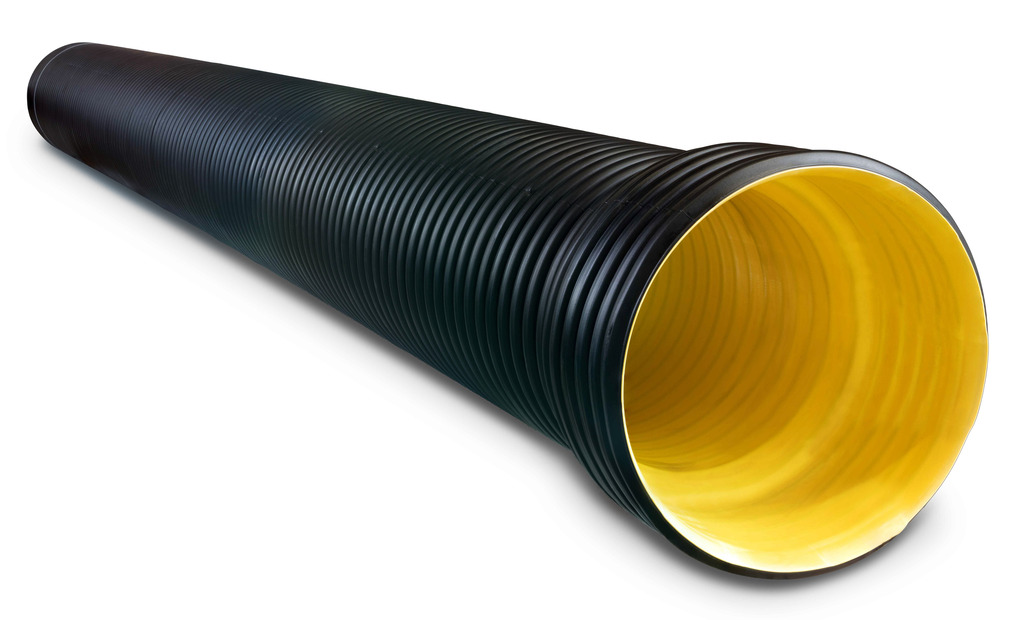

GR8225
BlackMax® PP Pipe SN8 225 x 6 m RRJ Black with yellow liner

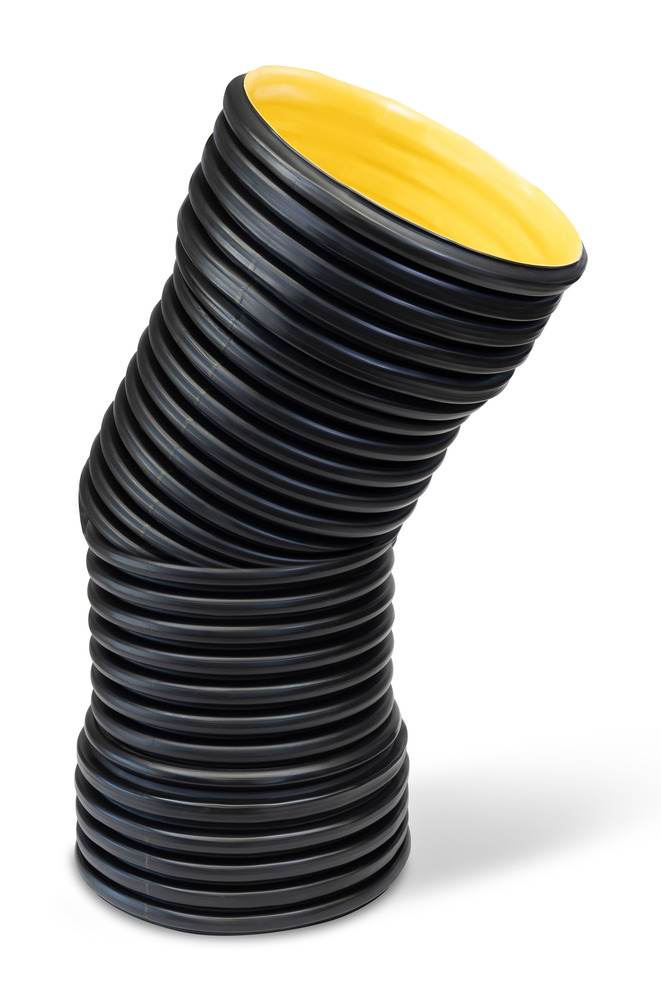

GR0245030
BlackMax® PP Bend DN450 x 30° FF RRJ

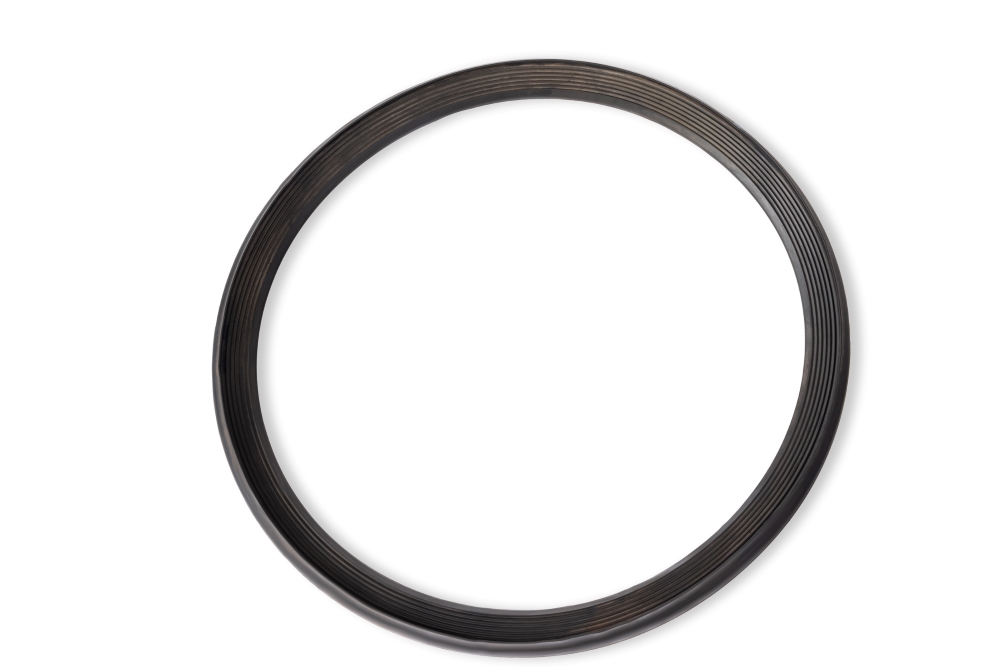

GERSEW600
BlackMax®/SewerMax® SBR Rubber Ring Seal DN600 Black
| DN | Mean pipe OD De (mm) | Mean pipe ID Di (mm) | Socket OD DEC (REF) (mm) | Mean withness mark length pw (mm) | Profile pitch P (REF) (mm) | Approx pipe barrel mass (kg/m) | Effective lengths Le min (mm) |
| 225 | 259 | 225 | 305 | 135 | 25 | 4 | 3000, 6000 |
| 300 | 344 | 300 | 403 | 147 | 33 | 7 | 3000, 6000 |
| 375 | 428 | 373 | 502 | 176 | 40 | 10 | 3000, 6000 |
| 450 | 514 | 447 | 603 | 222 | 50 | 14 | 3000, 6000 |
| 525 | 600 | 522 | 704 | 254 | 57 | 16 | 3000, 6000 |
| 600 | 682 | 596 | 750 | 296 | 66 | 22 | 2751, 5910 |
| 750 | 845 | 732 | 900 | 319 | 80 | 31 | 2850, 6160 |
| 900 | 1015 | 871 | 1075 | 398 | 100 | 43 | 2650, 6000 |
| 1200 | 1340 | 1160 | 1435 | 476 | 133 | 78 | 2600, 5950 |
*DN1000 available soon, contact Iplex for more information.
For mainstream civil
drainage applications.
Certified with confidence
BlackMax is fully certified with Product Certification ISO Type 5 and WaterMark and is manufactured in compliance with Australian Standard (AS/NZS 5065).
Easy installation

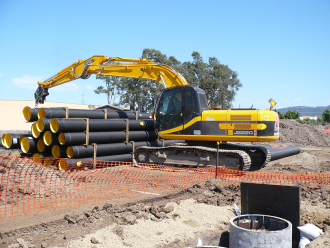

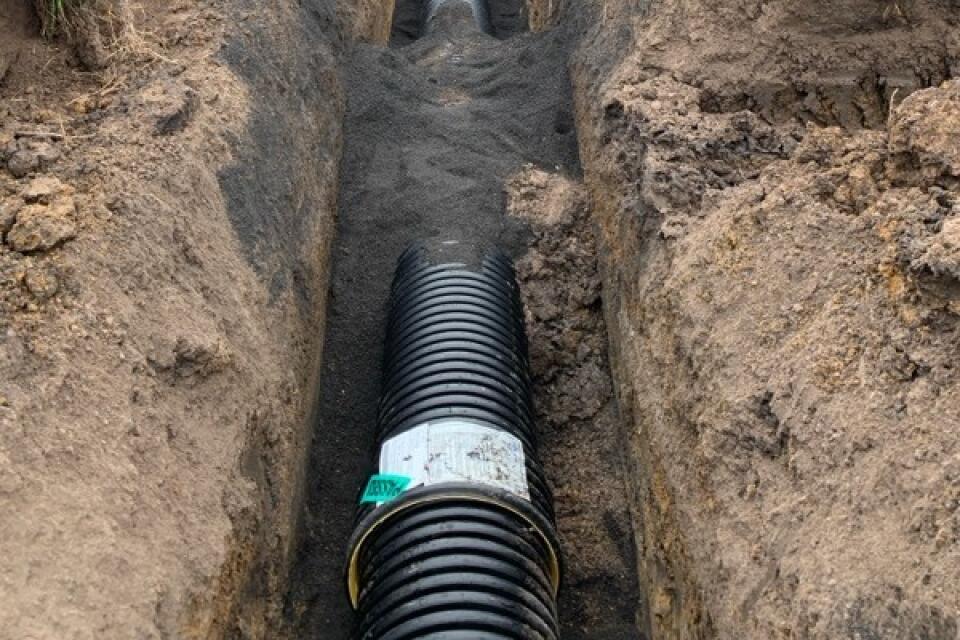

Lightweight construction, longer pipe lengths and fewer joints make BlackMax easier to handle and quicker to lay compared to concrete, reducing overall installation time.
Safer to use
No silica dust when cutting and working with BlackMax on site.
Built to last
Across a wide range of sizes, BlackMax combines structural integrity and secure joint performance with an expected service life of more than 100 years.* *When installed and maintained in accordance with manufacturer’s guidelines.
Efficient water flow
Smooth internal surfaces improve hydraulic performance, delivering efficient water movement and more effective system design.
