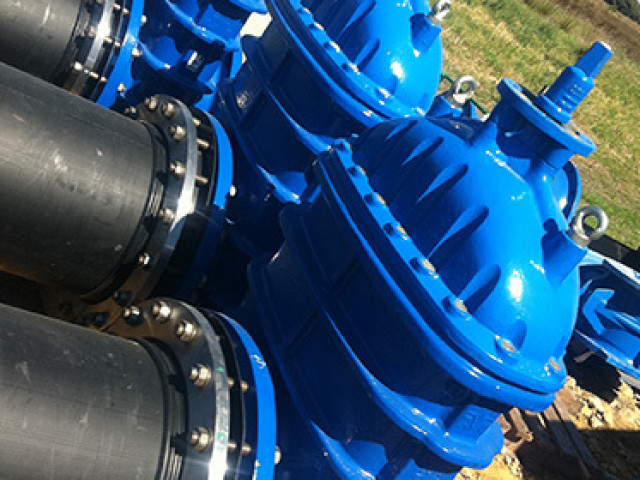

600 AVK Gate Valve, Resilient Seated FL PN16 ACC Series 55
Enquire Download Product Sheet
C523.60
Overview
- Fixed, integral wedge nut prevents vibration and ensures durability
- Ductile iron wedge, fully vulcanized with EPDM rubber
- Stainless steel gland flange, stem and bolts for increased corrosion resistance
- Seal housing incorporates dual O-ring seals and wiper ring for long life operation
- Stem sealing replaceable under pressure
- Round bonnet gasket fixed in a recess groove in bonnet preventing it from being blown out by pressure surges
- Bonnet bolts encircled by the bonnet gasket and gland bolts
- encircled by O-ring, thus there is no risk of corrosion
- Full bore
Additional Information
AVK Reference Code 556003415212061
Product Data Sheet
View
Product Properties
Size
600MM
Rating
PN16
Length
BLANK
Primary Material
DUCTILE IRON
UOM
EACH
Rubber Ring Material
EPDM (RRJ)
Lining Specification
Thermal bonded polymeric coatings AS/NZS 4158
Allowable Operating Pressure - 20 Degrees Celsius
PN16
Markings
AVK
Industry Specific Names
AVK
Alternative Iplex Products
PVC, PE, GRP
Mechanical Properties
Density - Specific Gravity
7.10
kg/m3
Ultimate Tensile Strength
400MPa
Hardness Shore D
250
Dimensions
Size
600MM
Standards & Accreditations
Product Standard
AS/NZS 2280
AS 1477 Type 2
AS 1477 Type 2
Product Approvals and Appraisals
WaterMark AS/NZS 2638.2.2011
Standards Mark AS2638.2
Standards Mark AS2638.2
